Product Overview: DMN6070SFCL-7

The DMN6070SFCL-7 is a high-performance N-Channel MOSFET designed and manufactured by Diodes Incorporated, a renowned leader in the semiconductor industry. This MOSFET is a testament to the company's commitment to providing energy-efficient and miniaturized solutions for a wide range of electronic applications.

Key Features

• Low On-Resistance: The DMN6070SFCL-7 is engineered with a low on-resistance (R<sub>DS(on)), which results in reduced conduction losses and improved overall efficiency in electronic circuits.
• High Continuous Drain Current: This device can support a high continuous drain current (I<sub>D), making it suitable for applications that require robust current handling capabilities.

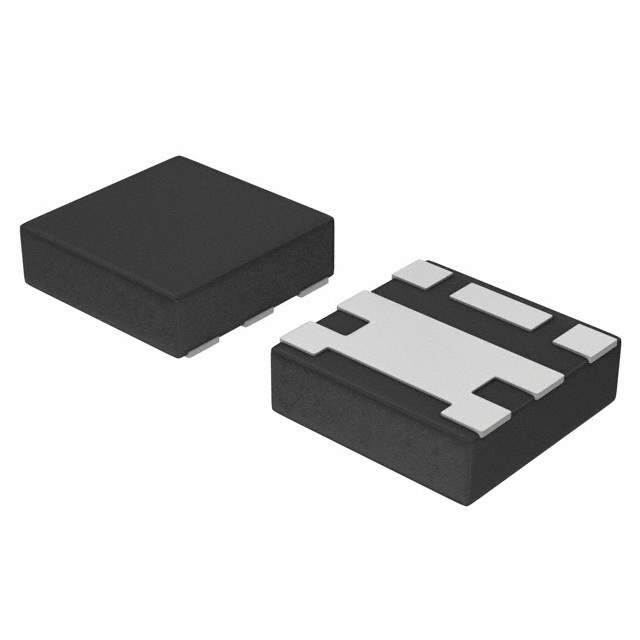

• PowerDI3333-8 Package: The compact PowerDI3333-8 package allows for a smaller footprint on the PCB, making it ideal for space-constrained applications.
• High-Speed Switching: With its fast switching speed, the DMN6070SFCL-7 is an excellent choice for high-frequency power switching applications.

Applications

The versatile nature of the DMN6070SFCL-7 makes it suitable for a wide array of applications, including:

• Power Management Circuits
• DC-DC Converters
• Load Switches
• Battery Management Systems
• Motors and Actuators

Technical Specifications

Parameter Value Drain-Source Voltage (V<sub>DS) 60V Continuous Drain Current (I<sub>D) 3.7A Power Dissipation (P<sub>D) 1.25W On-Resistance (R<sub>DS(on)) Typically 38mΩ at V<sub>GS = 10V

With its robust performance and compact size, the DMN6070SFCL-7 is an ideal choice for designers seeking to enhance the efficiency and reliability of their power management systems. Diodes Incorporated's commitment to quality ensures that this MOSFET meets the stringent requirements of modern electronic devices.
