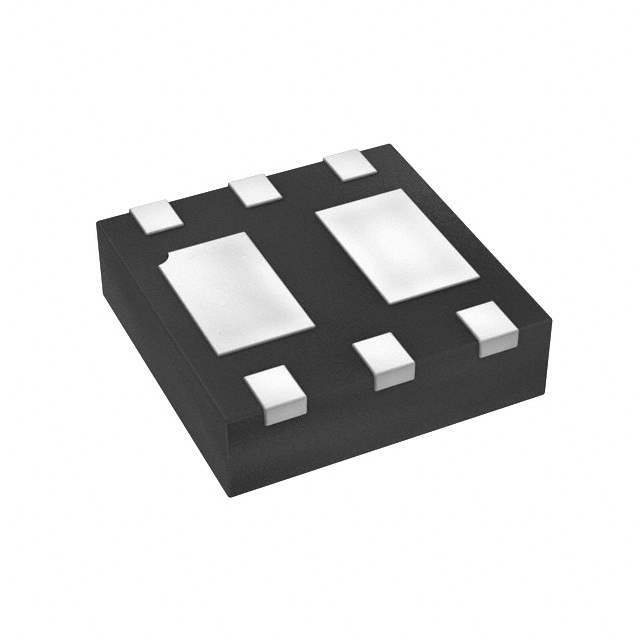

Same model may have multiple batches, images only for reference.
DMP2110UFDBQ-7Diodes Incorporated
Same model may have multiple batches, images only for reference.

DMP2110UFDBQ-7

Part No DMP2110UFDBQ-7
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET BVDSS: 8V~24V U-DFN2020-6
Datasheet
DMP2110UFDBQ-7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor >Products Transistors >FETs, MOSFETs Single FETs, MOSFETs
Part Status Active
Technology MOSFET (Metal Oxide)
FET Type P-Channel
Drain to Source Voltage (Vdss) 20 V
Current - Continuous Drain (Id) @ 25°C 3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 4.5V
Rds On (Max) @ Id, Vgs 80mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id 1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 6 nC @ 4.5 V
Input Capacitance (Ciss) (Max) @ Vds 443 pF @ 10 V
Win Source Part Number WS1309872-DMP2110UFDBQ-7
Ultra Librarian 3D Model Ultra Librarian DMP2110UFDBQ-7 CAD Model

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, which makes it ideal for high-efficiency power-management applications.

ā— Load switches ā— Power-management functions ā— Portable power adaptors
