DMTH10H032LPDWQ-13Diodes Incorporated

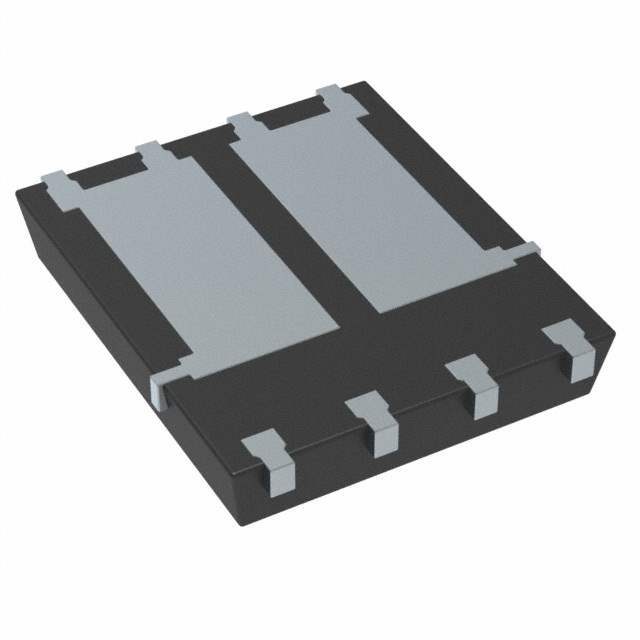

Same model may have multiple batches, images only for reference.

DMTH10H032LPDWQ-13

Part No DMTH10H032LPDWQ-13
Manufacturer Diodes Incorporated
Catalog TRANSISTORS
Description MOSFET 2N-CH 100V 24A PWRDI50
Datasheet
DMTH10H032LPDWQ-13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Diodes Incorporated
Category Discrete Semiconductor >Products >Transistors FETs, MOSFETs FET, MOSFET Arrays
Packaging  Bulk
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 N-Channel
Drain to Source Voltage (Vdss) 100V
Current - Continuous Drain (Id) @ 25°C 24A (Tc)
Rds On (Max) @ Id, Vgs 32mOhm @ 5A, 10V
Vgs(th) (Max) @ Id 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 11.9nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds 683pF @ 50V
Power - Max 3W (Ta), 37W (Tc)
Operating Temperature -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Win Source Part Number WS1309905-DMTH10H032LPDWQ-13
Ultra Librarian 3D Model Ultra Librarian DMTH10H032LPDWQ-13 CAD Model

Description

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:

ā— DC-DC converters ā— Motors
