Product Overview: ZXMP10A18GTA

The ZXMP10A18GTA is a state-of-the-art P-channel MOSFET designed and manufactured by Diodes Incorporated, a leading company in the semiconductor industry. This component is well-suited for a variety of applications, thanks to its high efficiency and reliability. It is commonly used in power management tasks, such as switching and amplification in electronic circuits.

Key Features

• Low On-Resistance: The ZXMP10A18GTA boasts an extremely low on-resistance, which significantly reduces power loss and improves overall efficiency in electronic circuits.
• High Threshold Voltage: With a high threshold voltage, this MOSFET can easily be driven by logic-level voltages, making it compatible with a wide range of control circuitries.
• Advanced PowerTrench® Process: Utilizing Diodes Incorporated's proprietary PowerTrench® process, the ZXMP10A18GTA offers superior performance, including lower gate charge and reduced capacitance.
• Enhanced Durability: The device is designed to withstand high energy pulses in the avalanche and commutation modes, which ensures a longer operational life.

Electrical Specifications

The ZXMP10A18GTA has a continuous drain current of -1.4A and a pulsed drain current of -5.6A. The drain-source voltage is -100V, and the power dissipation is 1.4W, which allows for robust performance in various electrical environments. It operates over a wide temperature range, ensuring reliability under varying conditions.

Applications

This MOSFET is ideal for use in load switch and battery protection circuits. It is also suitable for power management in portable devices, such as smartphones, tablets, and laptops, as well as in other consumer electronics where energy efficiency is paramount.

Package Details

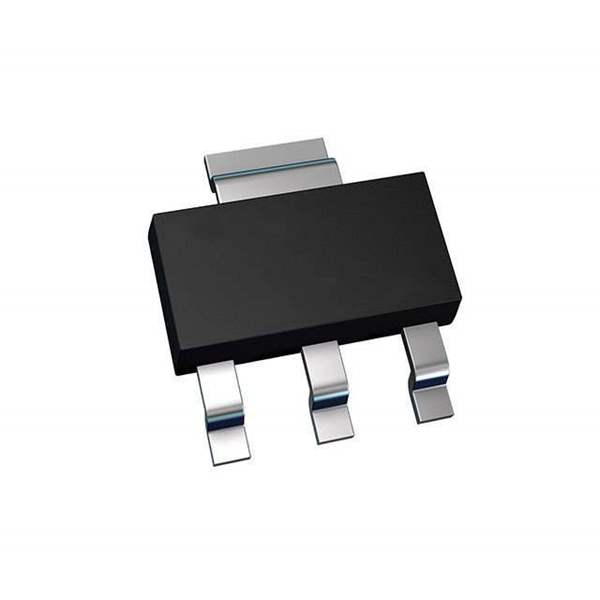

The ZXMP10A18GTA comes in a compact SOT-223 package, which is designed for surface-mount technology (SMT). This small footprint allows for high-density PCB layouts and is perfect for space-constrained applications.

Quality and Environmental Compliance

Diodes Incorporated is committed to providing environmentally friendly products. The ZXMP10A18GTA is RoHS compliant and free from harmful substances, ensuring it meets global environmental standards and regulations.
