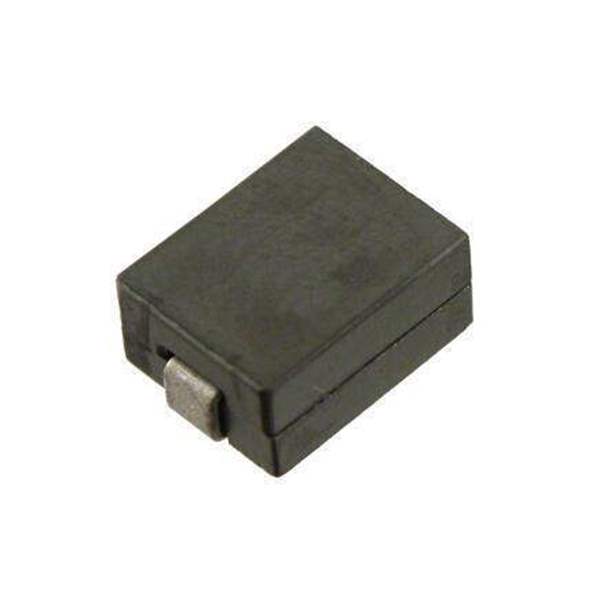

FP1105R1-R10-REaton - Electronics Division
Same model may have multiple batches, images only for reference.

FP1105R1-R10-R

Part No FP1105R1-R10-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 100NH 46A 0.35MOHM SMD
Datasheet
FP1105R1-R10-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Eaton - Electronics Division
Category Inductors, Coils, Chokes Fixed Inductors
Part Status Active
Type Drum Core, Wirewound
Inductance 100 nH
Tolerance ±10%
Current - Saturation (Isat) 81A
DC Resistance (DCR) 0.35mOhm
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Win Source Part Number WS1305717-FP1105R1-R10-R
Ultra Librarian 3D Model Ultra Librarian FP1105R1-R10-R CAD Model

Description

Product features
• 11.0 x 8.0 x 4.90mm surface mount package
• Ferrite core material
• High current carrying capacity
• Low core losses
• Controlled DCR tolerance for sensing circuits
• Inductance range from 101nH to 226nH
• Current range from 39 to 81Amps
• Frequency range up to 2MHz
• Halogen free, lead free, RoHS compliant
