The SP6205EM5-L-3.0/TR is a low dropout (LDO) regulator manufactured by Exar Corporation. This regulator provides a fixed 3.0V output voltage with a low quiescent current, making it suitable for battery-powered applications where energy efficiency is crucial. The 'L' designation signifies the low quiescent current version, and the '/TR' suffix indicates that the component is supplied in tape and reel packaging for automated assembly.

Applications:

• Portable Devices
• Wireless Communication Devices
• Microcontroller Power Supplies
• Sensor Power Supplies
• Real-Time Clocks (RTC)
• Memory Backup Systems
• Low-Power Microprocessors

Features:

• Low Dropout Voltage: Ensures stable output voltage even when the input voltage is close to the output voltage.
• Low Quiescent Current (L Version): Minimizes power consumption in standby or light-load conditions, extending battery life.
• Stable with Ceramic Capacitors: Allows for the use of small and cost-effective ceramic capacitors, reducing the overall solution size and cost.
• Short Circuit Protection: Protects the regulator and the load from damage in the event of a short circuit.
• Over-Temperature Protection: Prevents thermal damage to the regulator under high-temperature conditions.

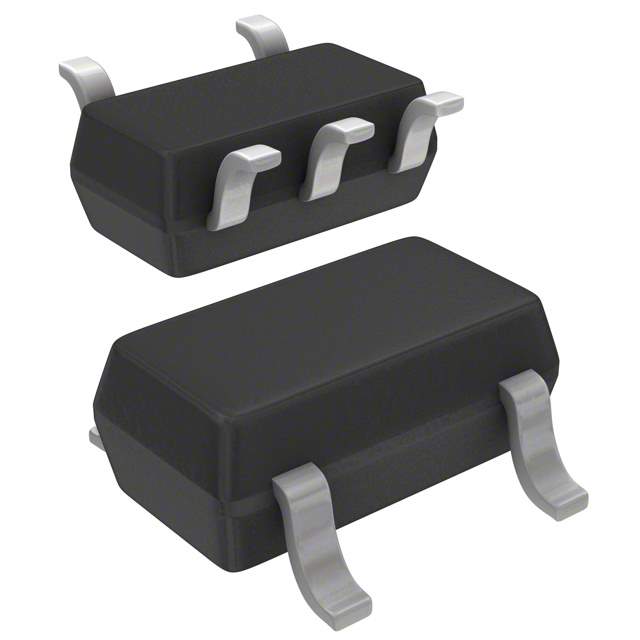

• Small SOT23-5 Package: Conserves board space and enables compact designs.
• Fixed 3.0V Output: Provides a precise and reliable 3.0V voltage source.

Benefits:

• Extended Battery Life: The combination of low dropout voltage and low quiescent current maximizes the operating time of battery-powered devices.
• Improved System Reliability: Built-in protection features safeguard against damage from short circuits and over-temperature conditions.
• Reduced Solution Size and Cost: Ceramic capacitor compatibility enables the use of smaller and less expensive capacitors.
• Simplified Design: The regulator's stable performance and compact package simplify integration into various applications.
• Consistent Performance: Delivers a stable 3.0V output voltage under varying load and temperature conditions.

Additional Details:

The SP6205EM5-L-3.0/TR operates with an input voltage typically up to 6V. The low dropout characteristic allows the regulator to maintain a stable 3.0V output even when the input voltage is only slightly higher than the output voltage. The device includes a thermal shutdown feature, which disables the output if the junction temperature exceeds a safe limit, preventing permanent damage. The /TR suffix indicates that the component is provided in tape and reel packaging, suitable for automated assembly processes.
