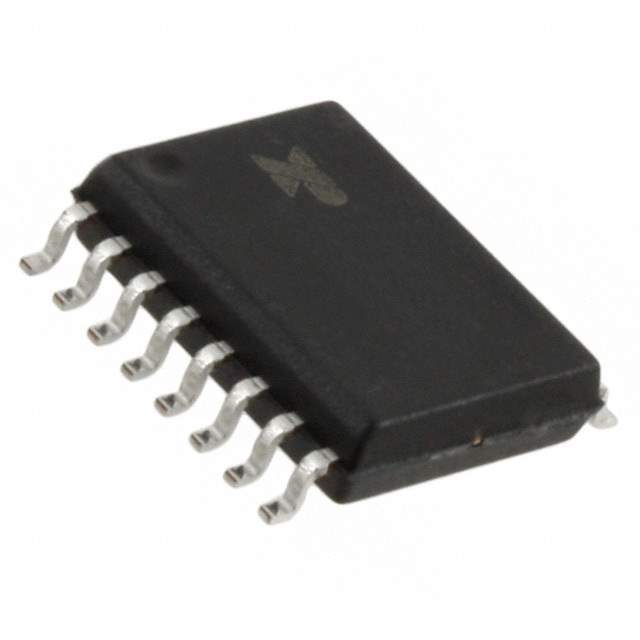

The XRT6164AID is a Quad T1/E1/J1 Long Haul and Short Haul Transceiver. It's designed to provide a complete physical layer interface solution for telecommunications equipment. This transceiver supports both T1 (1.544 Mbps) and E1 (2.048 Mbps) standards, as well as J1. It integrates all the necessary functions for transmitting and receiving data over these lines, ensuring reliable communication in various network environments.

Applications:

• PBX (Private Branch Exchange) systems: Used to connect PBX systems to the public switched telephone network (PSTN).
• Channel banks: Provides the interface for converting between analog and digital signals in channel banks.
• Digital cross-connect systems (DCS): Facilitates the switching and routing of digital signals in DCS equipment.
• Routers and gateways: Integrates T1/E1 connectivity into routers and gateways for wide area network (WAN) access.
• Voice over IP (VoIP) equipment: Enables the transmission of voice signals over IP networks using T1/E1 lines.
• Wireless base stations: Provides backhaul connectivity for wireless base stations.

Features:

• Quad T1/E1/J1 transceiver: Supports multiple T1, E1, and J1 lines.
• Long haul and short haul support: Compatible with both long-distance and short-distance transmission.
• Integrated clock recovery: Extracts timing information from the received signal.
• Jitter attenuation: Reduces jitter in the transmitted and received signals.
• Line build-out (LBO) selection: Allows for adjustment of the transmit signal level to compensate for line loss.
• Loopback testing: Enables self-testing of the transceiver functionality.

Benefits:

• Reduced system cost: Integrated functionality lowers the overall cost of the system.
• Improved system performance: Clock recovery and jitter attenuation ensure reliable data transmission.
• Simplified design: Integrated features simplify the design process and reduce time-to-market.
• Increased flexibility: Support for multiple standards and line lengths provides greater flexibility in network design.
• Enhanced reliability: Robust design and built-in testing capabilities ensure reliable operation.

Additional Details:

The XRT6164AID operates from a single 3.3V power supply. It supports various framing formats and line coding schemes. The device is typically controlled via a parallel or serial interface. Detailed specifications include transmit and receive signal levels, jitter performance, and power consumption, which are available in the product datasheet.
