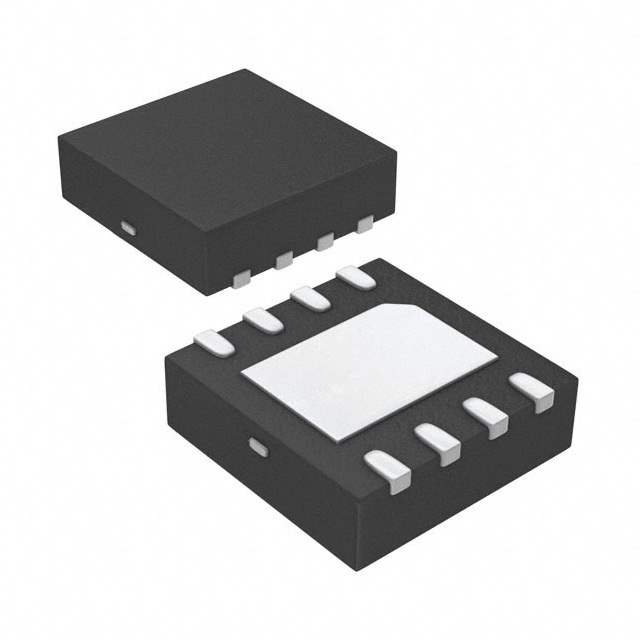

FAN3224TMPX Real Image
Same model may have multiple batches, images only for reference.

FAN3224TMPX

Part No FAN3224TMPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Gate Drivers
Description IC GATE DVR DUAL 4A 8-MLP
Datasheet
FAN3224TMPX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Driven Configuration Low-Side
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 4.5 V to 18 V
Logic Voltage - VIL, VIH 0.8V, 2V
Current - Peak Output (Source, Sink) 5A, 5A
Input Type Non-Inverting
Rise and Fall Time 12ns, 9ns
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-MLP (3x3)
Win Source Part Number 015824-FAN3224TMPX
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FAN3224TMPX CAD Model

Description

Product Overview

The FAN3224TMPX is designed to drive high-speed, dual-channel MOSFET with exceptional performance for enhanced power efficiency in compact power management solutions.

Features and Benefits

  • Dual MOSFET Driver Capability: Enhances flexibility for complex circuit designs.
  • High Switching Precision: Provides accurate control and response.
  • Environmentally Robust: Works reliably in a wide range of temperatures.
  • Low Power Consumption: Maximizes overall system performance.

Applications

  • Telecom Power Supplies
  • Personal Computing Power Systems
  • High-efficiency Motor Controllers
  • Battery-powered Devices
