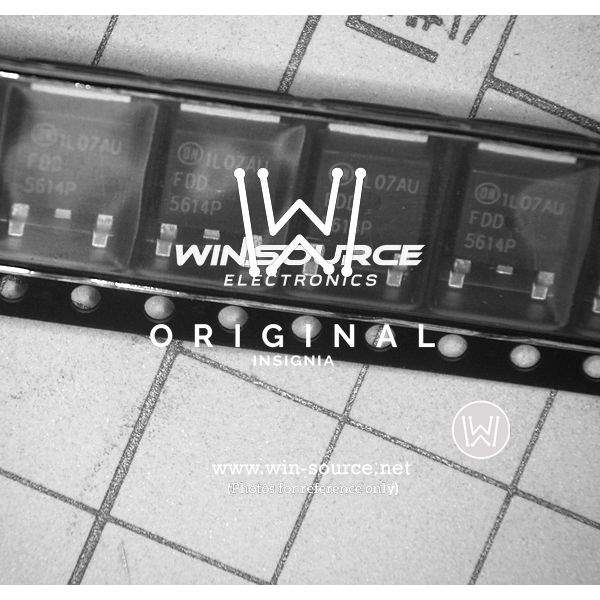

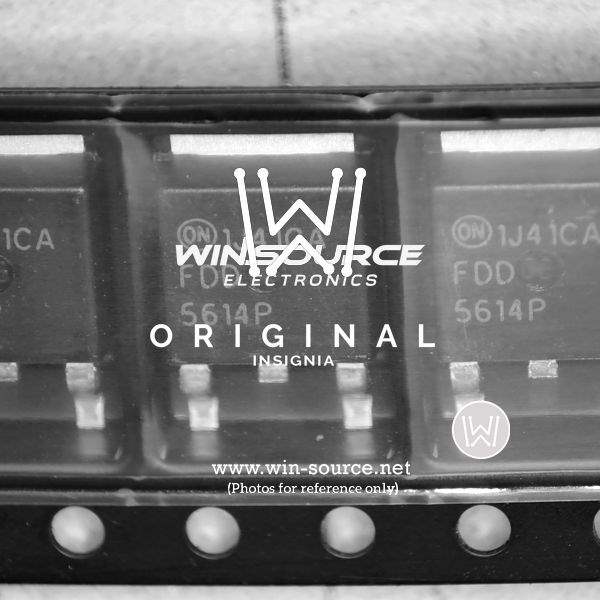

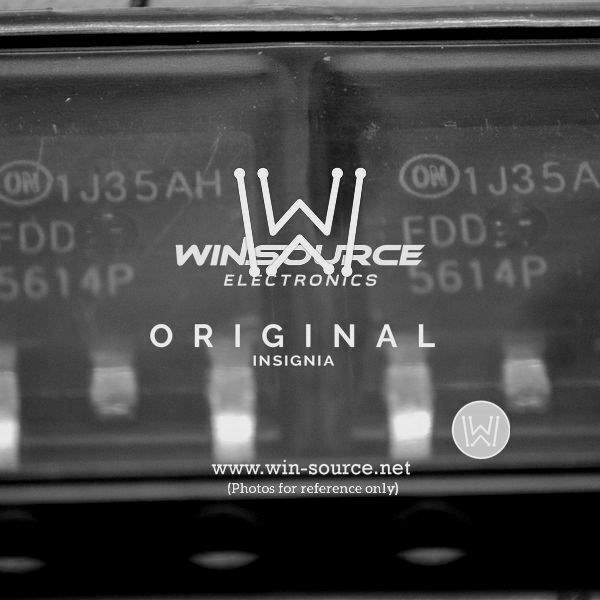

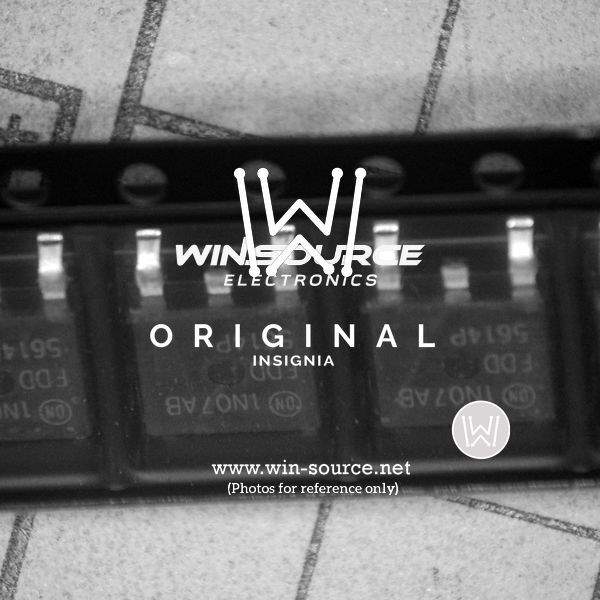

FDD5614P

Part No FDD5614P
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 60V 15A DPAK
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 60V
Continuous Drain Current at 25°C 15A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 250μA
Max Gate Charge 24nC @ 10V
Max Input Capacitance 759pF @ 30V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 3.8W (Ta), 42W (Tc)
Maximum Rds On at Id,Vgs 100 mOhm @ 4.5A, 10V
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting SMD (SMT)
Case / Package TO-252
Dimension TO-252-3, DPak (2 Leads + Tab), SC-63
Win Source Part Number 066925-FDD5614P
Family Name FDD5614P
Introduction Date February 06, 2001
ECCN EAR99
Country of Origin Israel, Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Power Management
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian FDD5614P CAD Model

Description

FDD5614P from Fairchild/ON Semiconductor is listed in the Transistors - FETs, MOSFETs - RF category and is typically evaluated by engineers for switching or signal-control roles where MOSFET performance, supply continuity, and compliance documentation matter. It can be relevant in RF-adjacent designs, power management sections, and supporting circuitry used in communications, industrial electronics, and embedded hardware platforms. For sourcing teams, the value of this device often comes from the manufacturer lineage and the ability to align legacy designs with known semiconductor brands. Because the lifecycle status for FDD5614P is currently information not available, engineering and procurement teams should confirm whether the part remains in active production before committing it to new designs. RoHS compliance status is also information not available from the provided data, so buyers should request the latest manufacturer declaration or datasheet. This makes FDD5614P most suitable for controlled qualification workflows where technical fit, compliance verification, and supply-risk review are handled early.
