Same model may have multiple batches, images only for reference.

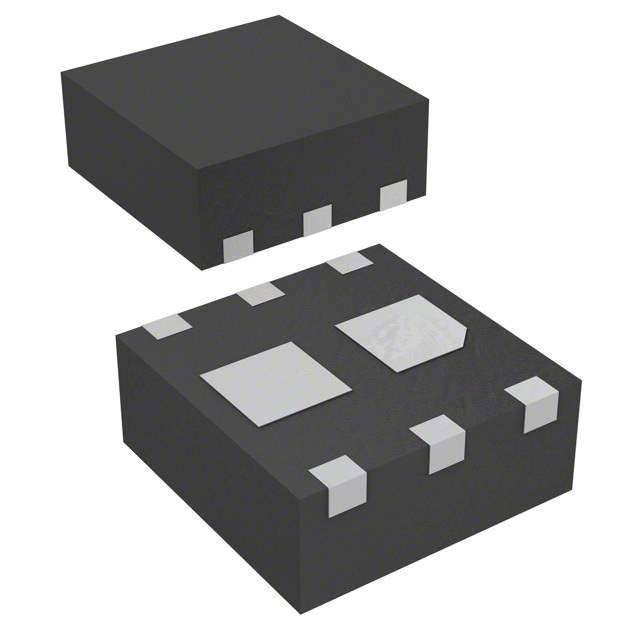

FDMA3023PZ Real Image
Same model may have multiple batches, images only for reference.

FDMA3023PZ

Part No FDMA3023PZ
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 30V 2.9A MICROFET6
Datasheet
FDMA3023PZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 2.9A
Maximum Rds On at Id,Vgs 90 mOhm @ 2.9A, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 11nC @ 4.5V
Max Input Capacitance 530pF @ 15V
Maximum Power Dissipation 700mW
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-MicroFET (2x2)
Win Source Part Number 016007-FDMA3023PZ
Family Name FDMA3023PZ
Introduction Date July 28, 2006
ECCN EAR99
Country of Origin Thailand, United States of America
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMA3023PZ CAD Model

Description

The Fairchild/ON Semiconductor FDMA3023PZ is a dual P-channel FET with a logic level gate.

  • Power Dissipation (Max): 700mW
  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current (25°C): 2.9A
  • Operating Temperature: -55℃ to 150℃
  • Package: 6-MicroFET (2x2)
  • Package Quantity: 3k pcs
