FDMA7628 Fairchild/ON Semiconductor FDMA7628 real image FDMA7628 label picture
Same model may have multiple batches, images only for reference.
FDMA7628 Fairchild/ON Semiconductor FDMA7628 real image FDMA7628 label picture
FDMA7628 Fairchild/ON Semiconductor FDMA7628 real image FDMA7628 label picture
Same model may have multiple batches, images only for reference.

FDMA7628

Part No FDMA7628
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 6QFN
Datasheet
FDMA7628 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 9.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 17.5nC @ 4.5V
Max Input Capacitance 1680pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 1.9W (Ta)
Maximum Rds On at Id,Vgs 14.5 mOhm @ 9.4A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)

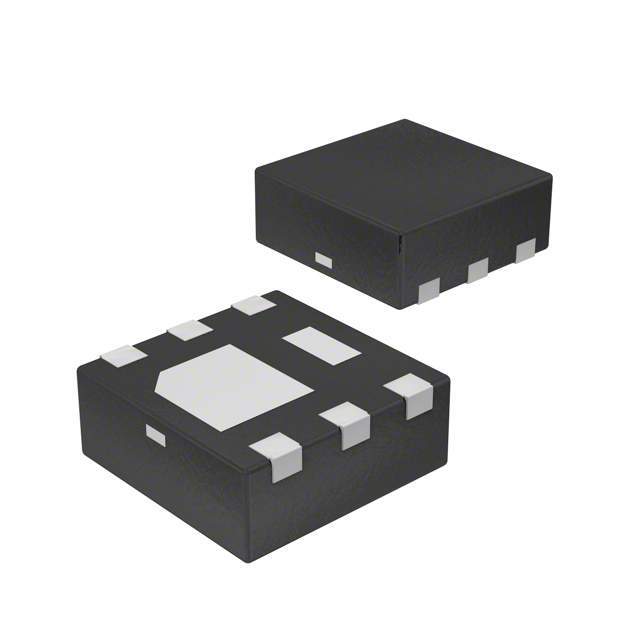

Case / Package 6-MicroFET (2x2)
Dimension 6-WDFN Exposed Pad
Win Source Part Number 1038181-FDMA7628
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMA7628 CAD Model

Description

The FDMA7628 is a N-Channel MOSFET manufactured by Fairchild/ON Semiconductor.

  • Manufacturer: Fairchild/ON Semiconductor
  • Product Name: FDMA7628
  • Packaging: 6-MicroFET (2x2)
  • Power Dissipation: 1.9W (Ta)
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current @ 25°C: 9.4A (Ta)
  • Gate-Source Threshold Voltage: 1V @ 250μA
  • Maximum Gate Charge: 17.5nC @ 4.5V
  • Maximum Input Capacitance: 1680pF @ 10V
  • Maximum Rds On (Id,Vgs): 14.5 mOhm @ 9.4A, 4.5V
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Package Contains: 3k pcs
