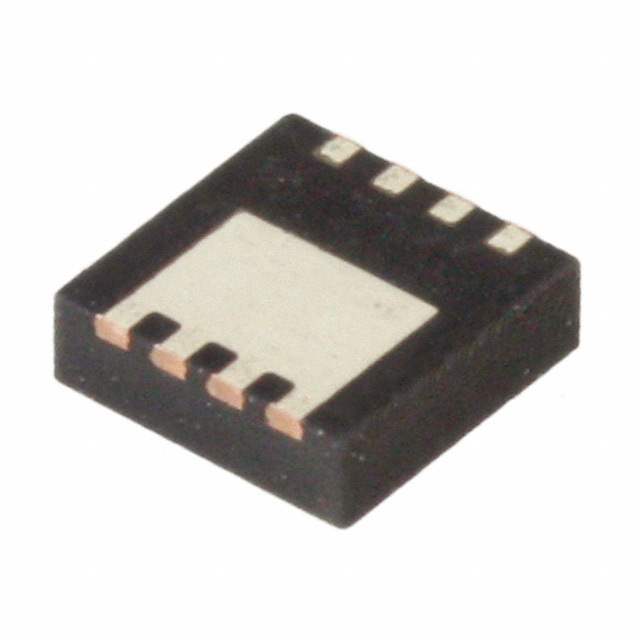

FDMC86244 Real Image FDMC86244 Real Image
Same model may have multiple batches, images only for reference.
FDMC86244 Real Image FDMC86244 Real Image
FDMC86244 Real Image FDMC86244 Real Image
Same model may have multiple batches, images only for reference.

FDMC86244

Part No FDMC86244
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 150V 2.8A POWER33
Datasheet
FDMC86244 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 150V
Continuous Drain Current at 25°C 2.8A (Ta), 9.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 6V, 10V
Gate-Source Threshold Voltage 4V @ 250μA
Max Gate Charge 5.9nC @ 10V
Max Input Capacitance 345pF @ 75V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.3W (Ta), 26W (Tc)
Maximum Rds On at Id,Vgs 134 mOhm @ 2.8A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-MLP (3.3x3.3)
Dimension 8-PowerWDFN
Win Source Part Number 066981-FDMC86244
Family Name FDMC86244
Introduction Date July 28, 2006
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMC86244 CAD Model

Description

The Fairchild/ON Semiconductor 066981-FDMC86244 is an N-Channel MOSFET ideal for use in discrete semiconductor products.

  • Power Dissipation: 2.3W (Ta), 26W (Tc)
  • Drain-Source Breakdown Voltage: 150V
  • Continuous Drain Current: 2.8A (Ta), 9.4A (Tc)
  • Operating Temperature: -55°C to 150°C
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Rds On: 134 mOhm @ 2.8A, 10V
  • Package: 8-MLP (3.3x3.3)
