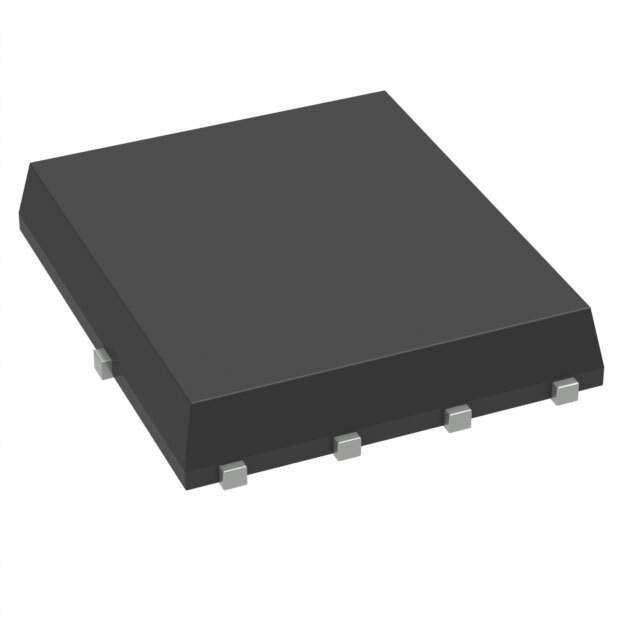

FDMS8023S Real Image
Same model may have multiple batches, images only for reference.

FDMS8023S

Part No FDMS8023S
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V POWER56
Datasheet
FDMS8023S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 26A (Ta), 49A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Gate-Source Threshold Voltage 3V @ 1mA
Max Gate Charge 57nC @ 10V
Max Input Capacitance 3550pF @ 15V
Maximum Gate-Source Voltage ±20V
Power Dissipation (Max) 2.5W (Ta), 59W (Tc)
Maximum Rds On at Id,Vgs 2.4 mOhm @ 26A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package Power56
Dimension 8-PowerTDFN
Win Source Part Number 1038247-FDMS8023S
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FDMS8023S CAD Model

Description

The FDMS8023S is an N-Channel MOSFET from Fairchild/ON Semiconductor.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current: 26A @ 25°C, 49A @ Tc
  • Gate-Source Threshold Voltage: 3V @ 1mA
  • Maximum Rds On: 2.4 mOhm @ 26A and 10V
  • Power Dissipation: 2.5W (Ta), 59W (Tc)
  • Package: Power56
  • Drive Voltage: 4.5V and 10V
  • Temperature Range: -55°C to 150°C (TJ)
