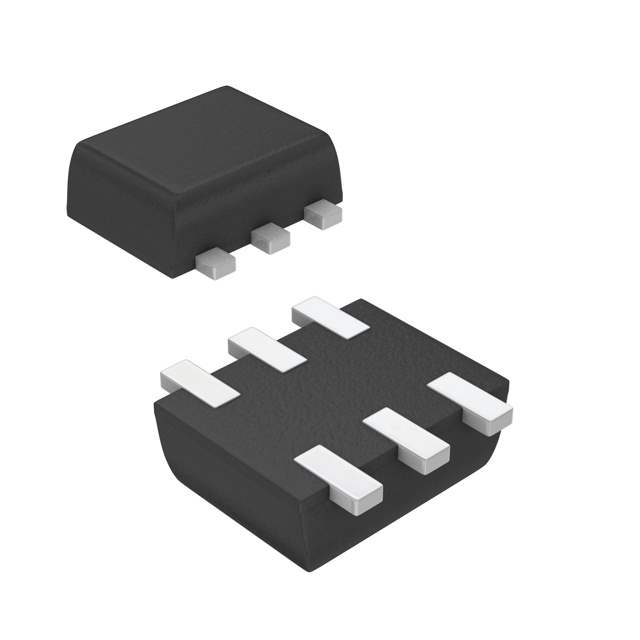

The Fairchild/ON Semiconductor 067130-FDY1002PZ is a 2 P-Channel (Dual) FET with Logic Level Gate feature. It is a Discrete Semiconductor Product that is mounted on a SMD (SMT) with a SC-89-6 case/package.

• Maximum Power Dissipation: 446mW
• Drain-Source Breakdown Voltage: 20V
• Continuous Drain Current: 830mA @ 25°C
• Gate-Source Threshold Voltage: 1V @ 250μA
• Maximum Gate Charge: 3.1nC @ 4.5V
• Maximum Input Capacitance: 135pF @ 10V
• Maximum Rds On: 500 mOhm @ 830mA, 4.5V
• Temperature Range: -55°C to 150°C (TJ)
• Supply and Demand Status: Balanced
• Quantity per Package: 3k pcs
