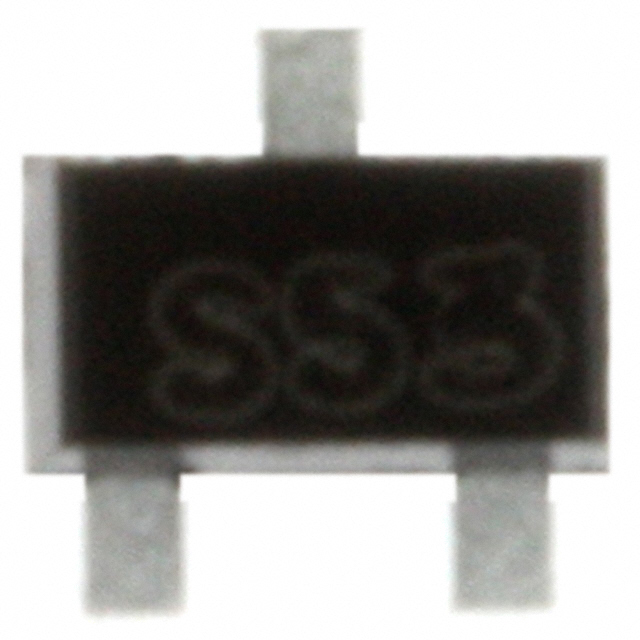

Same model may have multiple batches, images only for reference.
FJY4003R Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FJY4003R

Part No FJY4003R
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single, Pre - Biased
Description TRANS PREBIAS PNP 200MW SOT523F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Transistor Polarity PNP - Pre-Biased
Maximum Current Collector 100mA
VCEO Maximum Collector-Emitter Breakdown Voltage 50V
Resistor - Base (R1) (Ohms) 22k
Resistor - Emitter Base (R2) (Ohms) 22k
Typical Gain (hFE) (Min) 56 @ 5mA, 5V
Max Vce (sat) 300mV @ 500μA, 10mA
Collector Cut-off Current(Max) 100nA (ICBO)
Frequency - Transition 250MHz
Maximum Power Dissipation 200mW
Mounting SMD (SMT)
Case / Package SOT-523F
Win Source Part Number 1038971-FJY4003R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FJY4003R CAD Model

Description

The FJY4003R is a PNP-pre-biased transistor manufactured by Fairchild/ON Semiconductor.

  • Supply and Demand Status: Sufficient
  • Win Source Part Number: 1038971-FJY4003R
  • Mounting: SMD (SMT)
  • Maximum Current Collector: 100mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 50V
  • Max Vce (sat): 300mV @ 500μA, 10mA
  • Collector Cut-off Current (max): 100nA (ICBO)
  • Typical Gain (hFE) (min): 56 @ 5mA, 5V
  • Maximum Power Dissipation: 200mW
  • Case/Package: SOT-523F
  • Frequency Transition: 250MHz
  • Resistor-Base (R1) (ohms): 22k
  • Resistor-Emitter Base (R2) (ohms): 22k
