The FQD5N50CTM_WS is an N-Channel MOSFET manufactured by Fairchild Semiconductor, now part of ON Semiconductor. It is designed for high-voltage, high-speed switching applications. This MOSFET is particularly well-suited for power supplies, motor control, and lighting control circuits. The 'WS' likely indicates a specific packaging or manufacturing variation.

Applications:

• Power Supplies: Used in switched-mode power supplies (SMPS) for efficient power conversion.
• Motor Control: Employed in motor drivers for controlling the speed and direction of DC motors.
• Lighting Control: Utilized in electronic ballasts and LED drivers for controlling lighting systems.
• Inverters: Used in DC-AC inverters for converting DC power to AC power.
• Uninterruptible Power Supplies (UPS): Integrated into UPS systems for providing backup power.

Features:

• N-Channel MOSFET: Provides an N-Channel configuration for versatile circuit design.
• High Voltage (500V): Suitable for high-voltage applications.
• Low On-Resistance (RDS(on)): Minimizes power loss and improves efficiency.
• Fast Switching Speed: Enables efficient switching in high-frequency applications.
• Avalanche Energy Rated: Provides robustness against voltage spikes and transient events.

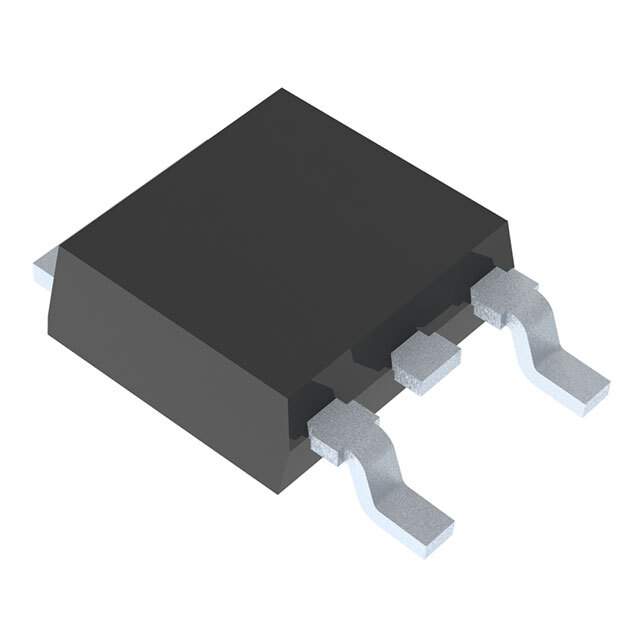

• TO-252 (D-PAK) Package: Offers good thermal performance for heat dissipation in a surface mount format.

Benefits:

• High Efficiency: Low on-resistance minimizes power loss, leading to higher efficiency.
• Reliable Performance: Avalanche rating ensures robustness and long-term reliability.
• High-Voltage Operation: Suitable for applications with high voltage requirements.
• Reduced Heat Dissipation: Lower power loss results in less heat generation, simplifying thermal management.

Additional Details:
