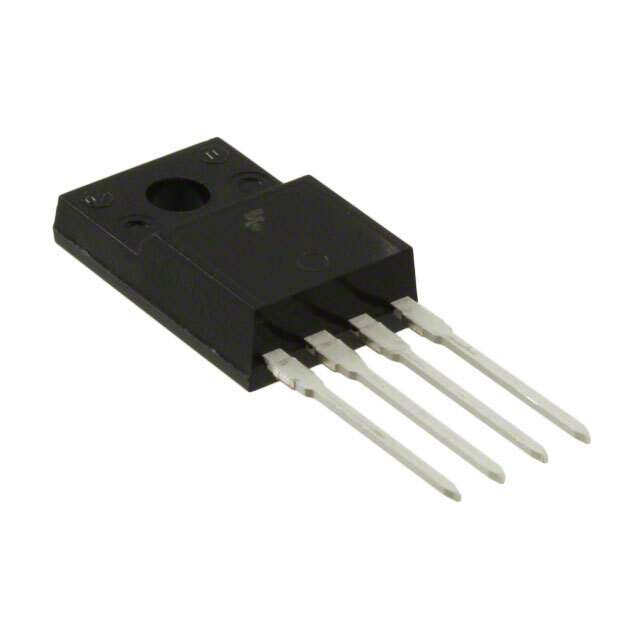

KA1M0565RTU Real Image
Same model may have multiple batches, images only for reference.

KA1M0565RTU

Part No KA1M0565RTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description 650V Integrated Power Switch for 60Watt offline flyback converters / IC FPS SWITCH DVDP/STB TO-220-4
Datasheet
KA1M0565RTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Not For New Designs
Output Isolation Non-Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback, Forward
Voltage - Start Up 15V
Supply Voltage - Operating 10 V to 30 V
Duty Cycle 77%
Frequency - Switching 67kHz
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage
Control Operating Temperature -25°C to 85°C (TA)
Case / Package TO-220F-4L
Mounting Through Hole
Win Source Part Number 145080-KA1M0565RTU
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name KA1M0565R
Introduction Date February 05, 2001
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian KA1M0565RTU CAD Model

Description

The Fairchild/ON Semiconductor 145080-KA1M0565RTU is an integrated circuit with a voltage breakdown of 650V and a frequency switching of 67kHz.

  • Manufacturer: Fairchild/ON Semiconductor
  • Voltage Breakdown: 650V
  • Frequency Switching: 67kHz
  • Duty Cycle: 77%
  • Output Isolation: non-isolated
  • Topology: flyback and forward
  • Supply Voltage: 10V to 30V
  • Package: TO-220F-4L
  • Operating Temperature Range: -25°C to 85°C (TA)
  • Supply and Demand Status: limited
  • Recommended for New Designs: No
  • Fault Protections: current limiting, over load, over temperature, and over voltage
