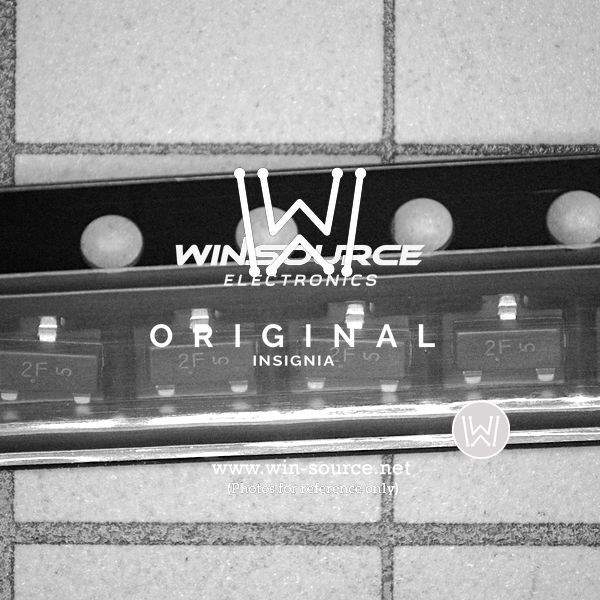

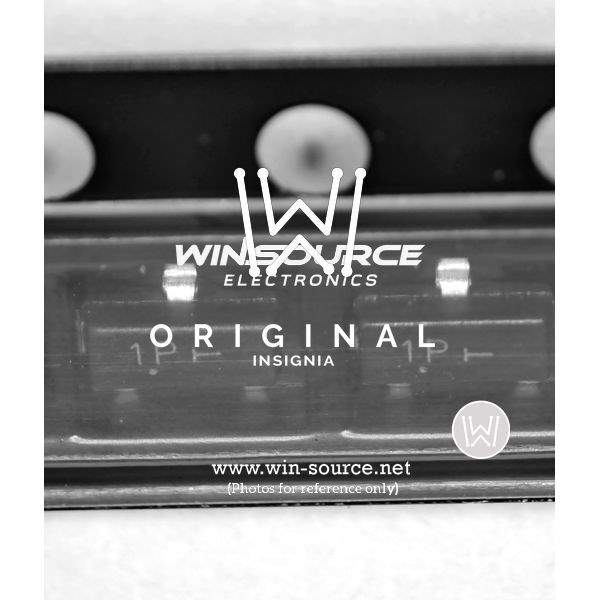

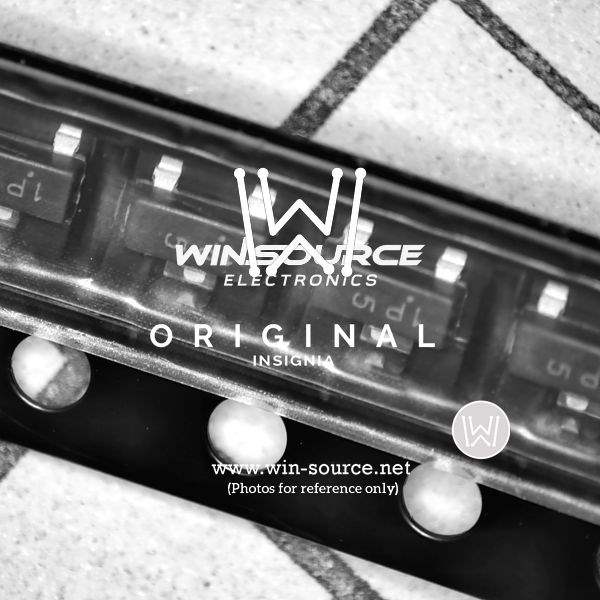

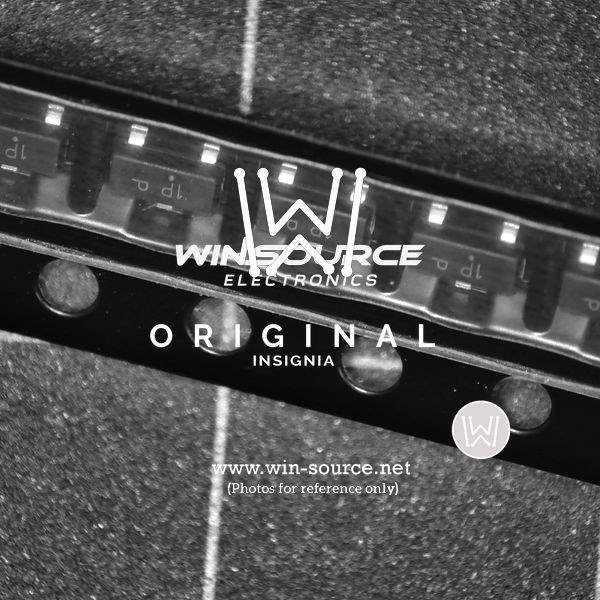

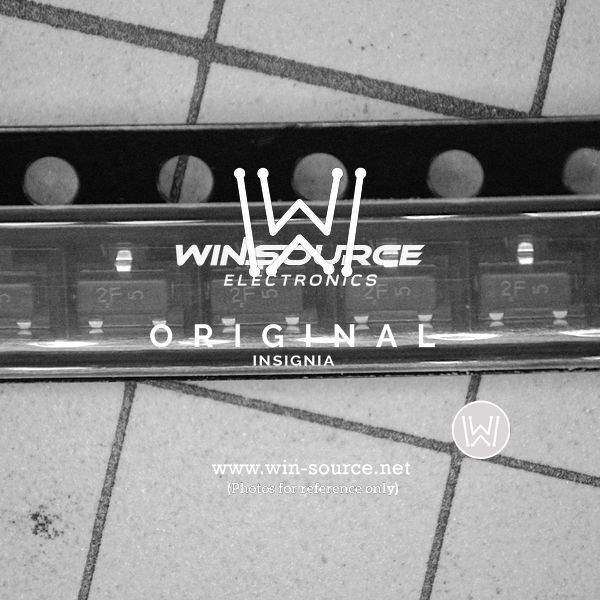

MMBT2222A Real Image MMBT2222A real image3385 MMBT2222A real image3386 MMBT2222A real image3387 MMBT2222A Real Image1 MMBT2222A Real Image2
Same model may have multiple batches, images only for reference.
MMBT2222A Real Image MMBT2222A real image3385 MMBT2222A real image3386 MMBT2222A real image3387 MMBT2222A Real Image1 MMBT2222A Real Image2
MMBT2222A Real Image MMBT2222A real image3385 MMBT2222A real image3386 MMBT2222A real image3387 MMBT2222A Real Image1 MMBT2222A Real Image2
Same model may have multiple batches, images only for reference.

MMBT2222A

Part No MMBT2222A
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS NPN 40V 0.6A SOT23
Datasheet
MMBT2222A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity NPN
Maximum Current Collector 600mA
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 1V @ 50mA, 500mA
Collector Cut-off Current(Max) 10nA (ICBO)
Typical Gain (hFE) (Min) 100 @ 150mA, 10V
Maximum Power Dissipation 225mW
Frequency - Transition 300MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-23
Win Source Part Number 095972-MMBT2222A
Family Name MMBT2222A
Introduction Date June 21, 2000
ECCN EAR99
Country of Origin Japan, Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Defence, Military & Aerospace, Automotive, Power Management, Industrial
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 600mA
Voltage - Collector Emitter Breakdown (Max) 40V
Vce Saturation (Max) @ Ib, Ic 1V @ 50mA, 500mA
Current - Collector Cutoff (Max) 10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 100 @ 150mA, 10V
Power - Max 350mW
Frequency - Transition 270MHz
Operating Temperature 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3
Ultra Librarian 3D Model Ultra Librarian MMBT2222A CAD Model

Description

The ON Semiconductor MMBT2222A is an NPN transistor that comes in SMD (SMT) mounting style.

  • Transition frequency: 300MHz
  • Maximum collector current: 600mA
  • Collector-emitter breakdown voltage: 40V
  • Maximum Vce (sat): 1V @ 50mA, 500mA
  • Collector cut-off current (Max): 10nA (ICBO)
  • Typical gain (hFE) (Min): 100 @ 150mA, 10V
  • Case/package: SOT-23
  • Supply and demand status: sufficient
