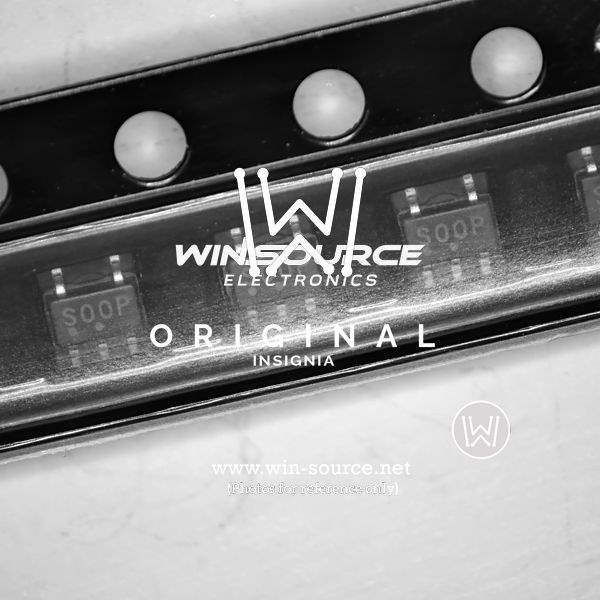

NC7S00P5X Real Image NC7S00P5X Real Image
Same model may have multiple batches, images only for reference.
NC7S00P5X Real Image NC7S00P5X Real Image
NC7S00P5X Real Image NC7S00P5X Real Image
Same model may have multiple batches, images only for reference.

NC7S00P5X

Part No NC7S00P5X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 1CH 2-INP SC-70-5
Datasheet
NC7S00P5X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 1
Number of Inputs 2
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.5V
Logic Level - High 1.5V
Max Propagation Delay @ V, Max CL 17ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-5
Dimension 5-TSSOP, SC-70-5, SOT-353
Win Source Part Number 024726-NC7S00P5X
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7S00P5X CAD Model

Description

The NC7S00P5X is a NAND gate integrated circuit manufactured by Fairchild/ON Semiconductor.

  • Packaging: Reel - TR
  • Mounting: Surface mount technology
  • Logic Type: NAND Gate
  • Inputs: Two
  • Current Output High: 2.6mA
  • Current Output Low: 2.6mA
  • Maximum Propagation Delay: 17ns @ 6V, 50pF
  • Quiescent Current: 1μA
  • Logic Level Low: 0.5V
  • Logic Level High: 1.5V
  • Package: SC-70-5
  • Popularity: Medium
  • Supply and Demand Status: Sufficient
  • Quantity per Package: 3k pcs
