Same model may have multiple batches, images only for reference.

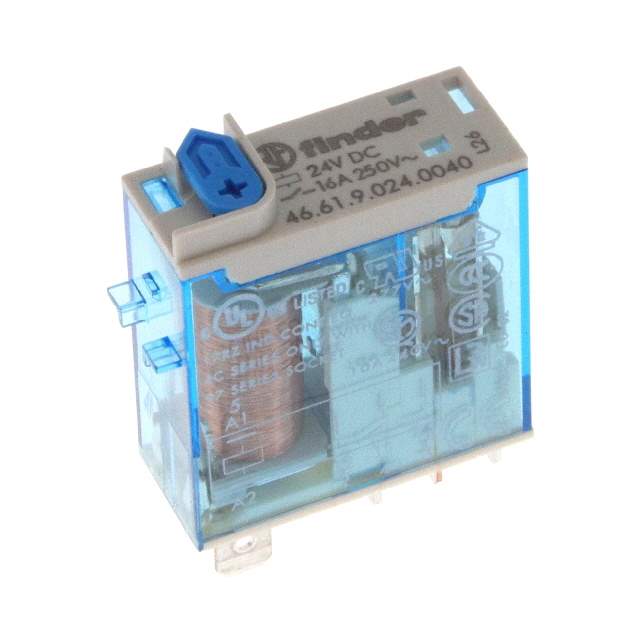

46.61.9.024.0040 Real Image
Same model may have multiple batches, images only for reference.

46.61.9.024.0040

Part No 46.61.9.024.0040
Manufacturer Finder Relays, Inc.
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 24V / General Purpose Relay SPDT (1 Form C) 24VDC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Finder Relays, Inc.
Series 46
Package Bulk
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16 A
Switching Voltage 440VAC - Max
Coil Current 20 mA
Coil Type Non Latching
Features Mechanical Indicator, Test Button
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Must Operate Voltage 17.5 VDC
Must Release Voltage 4.8 VDC
Operate Time 15 ms
Release Time 5 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.2 kOhms
Base Product Number 46.61.9
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Other Names 2066-46.61.9.024.0040
Standard Package 10
Win Source Part Number 1219681-46.61.9.024.0040
Ultra Librarian 3D Model Ultra Librarian 46.61.9.024.0040 CAD Model

Description

The Finder Relays, Inc. 46 series power relay is a general-purpose component that has a SPDT (1 Form C) contact form.

  • Contact Form: SPDT (1 Form C)
  • Termination Style: Plug-In, Quick Connect - 0.187" (4.7mm)
  • Feature: Mechanical Indicator, Test Button
  • Coil Voltage: 24VDC
  • Coil Resistance: 1.2 kOhms
  • Contact Rating (Current): 16 A
  • Switching Voltage: 440VAC - Max
  • Release Time: 5 ms
  • Operate Time: 15 ms
  • Seal Rating: -
  • Mounting Type: Socketable
  • Operating Temperature: -40°C ~ 70°C
  • Win Source Part Number: 1219681-46.61.9.024.0040
  • Base Product Number: 46.61.9
