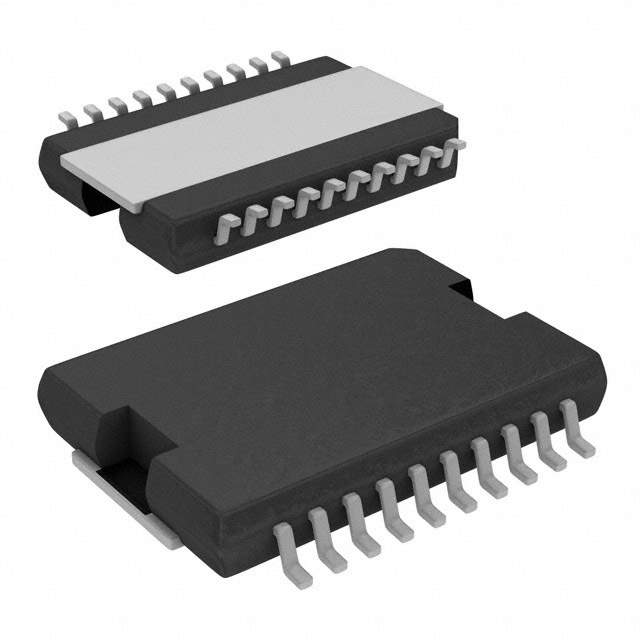

MC33186DH1R2 Real Image
Same model may have multiple batches, images only for reference.

MC33186DH1R2

Part No MC33186DH1R2
Manufacturer Freescale Semiconductor - NXP
Catalog PMIC - Full, Half - Bridge Drivers
Description IC MOTOR DRIVER PAR 20HSOP
Datasheet
MC33186DH1R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Reel - TR
Status Obsolete(EOL)
Applications DC Motors, General Purpose, Solenoids
Load Type Inductive
Technology Bi-CMOS
Rds On (Typ) 150 mOhm
Channel Output Current 5A
Supply Voltage - Operating 5 V to 28 V
Voltage - Load 5 V to 28 V
Temperature Range - Operating -40°C to 150°C (TJ)
Features Status Flag
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting SMD (SMT)
Case / Package 20-HSOP
Win Source Part Number 087863-MC33186DH1R2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MC33186DH1R2 CAD Model

Description

The NXP electronic component with Win Source Part Number 087863-MC33186DH1R2 is a Bi-CMOS technology-based integrated circuit that provides fault protection like current limiting, over temperature, over voltage, short circuit, and UVLO.

  • Voltage Load: 5 V to 28 V
  • Rds On (Typ): 150 mOhm
