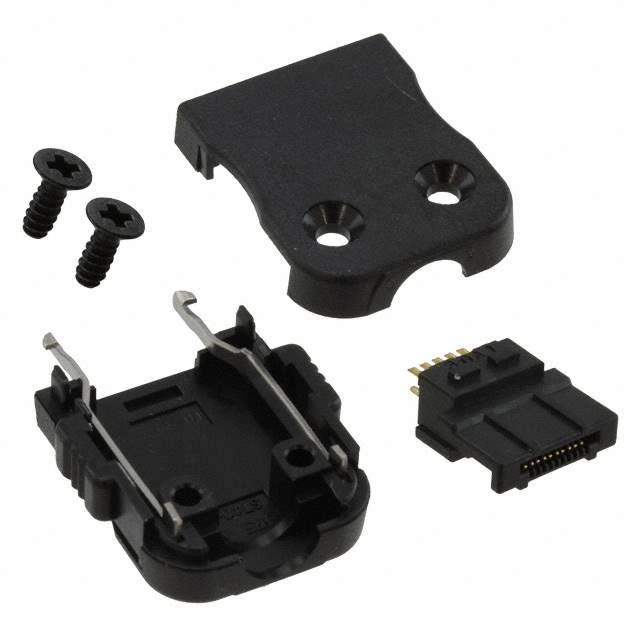

ST40-10S-CV(30) Real Image
Same model may have multiple batches, images only for reference.

ST40-10S-CV(30)

Part No ST40-10S-CV(30)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
ST40-10S-CV(30) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series ST
Package Tray
Connector Type Plug
Contact Type Male Pin
Number of Positions 10
Pitch 0.020" (0.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination Solder
Wire Type Discrete
Wire Gauge 28-30 AWG
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Color Black
Base Product Number ST40
Other Names H125252,241-0021-2-30
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1293403-ST40-10S-CV(30)
Ultra Librarian 3D Model Ultra Librarian ST40-10S-CV(30) CAD Model

Description

The ST series rectangular connector is a free hanging, panel mount male pin plug connector.

  • Positions: 10
  • Pitch: 0.020" (0.50mm)
  • Color: Black
  • Wire Gauge: 28-30 AWG
  • Cable Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Package: Tray
  • Mounting: In-Line
  • Manufacturer: Hirose Electric Co Ltd
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.8000
  • Other Names: H125252 and 241-0021-2-30
