Same model may have multiple batches, images only for reference.

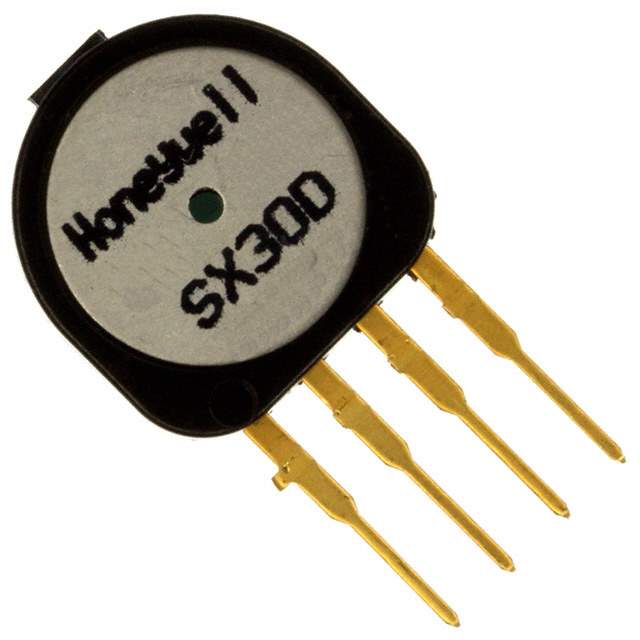

SX30D Real Image
Same model may have multiple batches, images only for reference.

SX30D

Part No SX30D
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR HI-IMP 30PSID BUTN PKG / Pressure Sensor 30PSI (206.84kPa) Differential 0 mV ~ 110 mV (5V) 4-SIP Module
Datasheet
SX30D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Package Bulk
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 30PSI (206.84kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 110 mV (5V)
Accuracy ±0.5%
Voltage - Supply 12V
Port Style No Port
Maximum Pressure 90PSI (620.53kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package Button
Other Names 287-1087R,287-1087,Q1073750
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234826-SX30D
Ultra Librarian 3D Model Ultra Librarian SX30D CAD Model

Description

The SX30D is a differential pressure sensor designed for board mount applications.

  • Output: Wheatstone bridge output with an output range from 0 mV to 110 mV (5V)
  • Accuracy: ±0.5%
  • Operating Pressure Range: 30 PSI to 90 PSI
  • Port Style: no port style
  • Package: 4-SIP module
  • Voltage Supply: 12V
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Honeywell Sensing and Productivity Solutions
  • Status: now obsolete
