2EDF9275FXUMA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

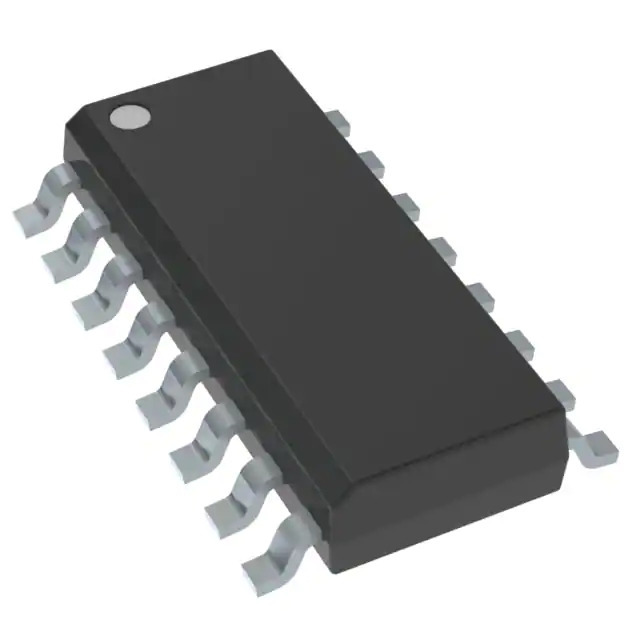

2EDF9275FXUMA1

Part No 2EDF9275FXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC IGBT DVR / Half-Bridge Gate Driver IC Non-Inverting PG-DSO-16-11
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr Infineon Technologies
Series EiceDriver™
Package Tape & Reel
Product Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, SiC MOSFET
Voltage - Supply 20V
Logic Voltage - VIL, VIH -, 1.65V
Current - Peak Output (Source, Sink) 4A, 8A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 650 V
Rise / Fall Time (Typ) 6.5ns, 4.5ns
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package PG-DSO-16-11
Base Product Number 2EDF9275
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1353903-2EDF9275FXUMA1
Ultra Librarian 3D Model Ultra Librarian 2EDF9275FXUMA1 CAD Model

Description

The EiceDriver™ 1353903-2EDF9275FXUMA1 is a gate driver integrated circuit (IC) from Infineon Technologies in the category of power management.

  • MSL Level: 3
  • Package Type: 16-SOIC
  • Width: 0.154 inches
  • Supplier Device Package: PG-DSO-16-11
  • Configuration: Half-Bridge
  • Channels: Independent channels for driving IGBTs and SiC MOSFETs
  • Switching Speed: Fast and Accurate
