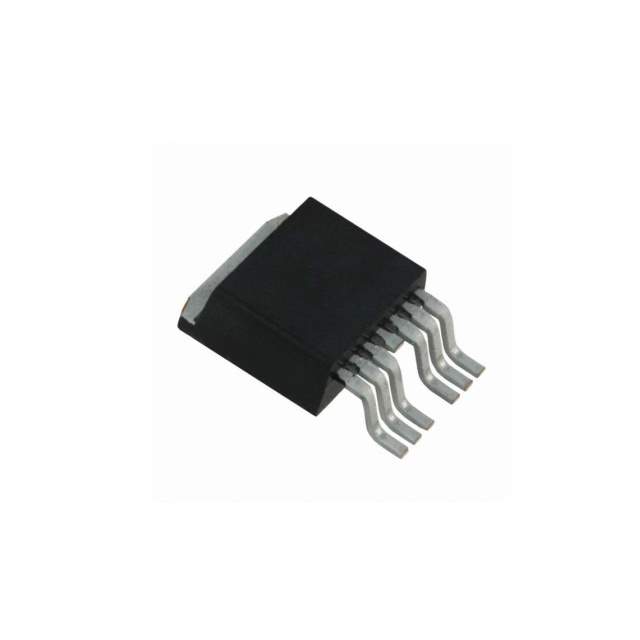

The IPB180N04S4-01 is an OptiMOS™ power MOSFET from Infineon Technologies. It is designed for high-efficiency power conversion and power management applications. This N-channel MOSFET offers very low on-state resistance (RDS(on)) and is optimized for synchronous rectification in DC-DC converters.

Applications:

• Synchronous Rectification in DC-DC Converters: Commonly used in servers, telecom equipment, and industrial power supplies.
• Power Management in Notebooks and Tablets: Efficient power switching for battery management and voltage regulation.
• Motor Control Applications: Used in brushed and brushless DC motor drives.
• High-Frequency Switching Applications: Suited for applications requiring fast switching speeds.
• Adapter and Charger Circuits: Efficient power conversion in AC-DC adapters and battery chargers.

Features:

• Optimized for Synchronous Rectification: Designed for high efficiency in synchronous rectifier topologies.
• Low On-State Resistance (RDS(on)): Minimizes conduction losses, increasing overall efficiency.
• Logic Level Compatibility: Can be driven directly by microcontrollers and logic circuits.
• Avalanche Rated: Robust design capable of withstanding avalanche conditions.
• 100% Avalanche Tested: Ensures high reliability and robustness.
• Pb-free plating: RoHS compliant.

Benefits:

• High Efficiency: Reduces power losses, leading to energy savings and lower operating temperatures.
• Reduced Heat Dissipation: Lower RDS(on) results in less heat generation, simplifying thermal management.
• Simplified Drive Circuitry: Logic level compatibility reduces the complexity of the driving circuit.
• Increased System Reliability: Avalanche rating enhances the MOSFET's robustness and reliability.
• Environmentally Friendly: Pb-free plating makes it compliant with environmental regulations.

Additional Details:

The IPB180N04S4-01 boasts a drain-source voltage (VDS) of 40V and a continuous drain current (ID) of up to 180A (depending on operating conditions). Its low gate charge (Qg) contributes to its fast switching speed. The device is typically available in a PG-HSOF-8 package. Key electrical characteristics such as RDS(on) at various gate-source voltages (VGS) are detailed in the Infineon datasheet. It's crucial to refer to the official datasheet for complete specifications and application guidelines to ensure optimal performance and safe operation.
