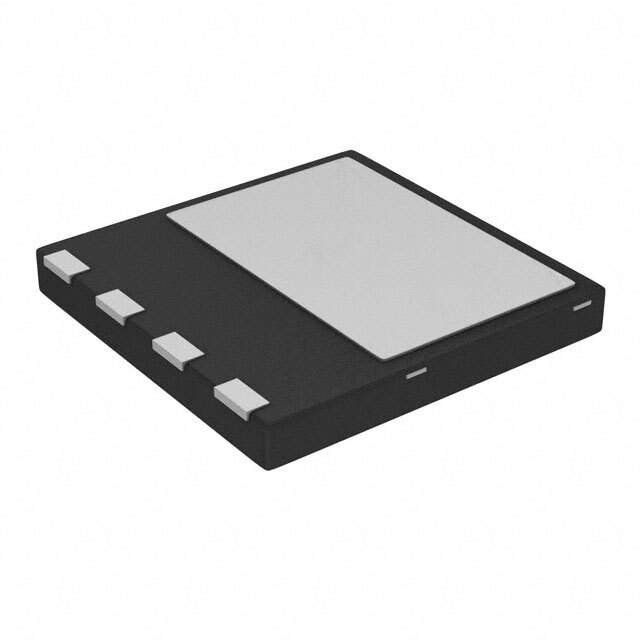

IPL60R255P6AUMA1 Real Image1 IPL60R255P6AUMA1 Real Image2
Same model may have multiple batches, images only for reference.
IPL60R255P6AUMA1 Real Image1 IPL60R255P6AUMA1 Real Image2
IPL60R255P6AUMA1 Real Image1 IPL60R255P6AUMA1 Real Image2
Same model may have multiple batches, images only for reference.

IPL60R255P6AUMA1

Part No IPL60R255P6AUMA1
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 600V 15.9A 4VSON / N-Channel 600 V 15.9A (Tc) 126W (Tc) Surface Mount PG-VSON-4
Datasheet
IPL60R255P6AUMA1 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Single
Mfr Infineon Technologies
Series CoolMOS™ P6
Package Tape & Reel
Product Status Obsolete
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V
Current - Continuous Drain (Id) @ 25°C 15.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 255mOhm @ 6.4A, 10V
Vgs(th) (Max) @ Id 4.5V @ 530µA
Gate Charge (Qg) (Max) @ Vgs 31 nC @ 10 V
Vgs (Max) ±20V
Input Capacitance (Ciss) (Max) @ Vds 1450 pF @ 100 V
Power Dissipation (Max) 126W (Tc)
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting SMD (SMT)
Supplier Device Package PG-VSON-4
Package / Case 4-PowerTSFN
Base Product Number IPL60R
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names IPL60R255P6AUMA1DKR,IPL60R255P6AUMA1TR,IPL60R255P6AUMA1CT,SP001017094,ROCINFIPL60R255P6AUMA1,2156-IPL60R255P6AUMA1-ITTR-ND,2156-IPL60R255P6AUMA1
Standard Package 3,000
Win Source Part Number 1065279-IPL60R255P6AUMA1
Ultra Librarian 3D Model Ultra Librarian IPL60R255P6AUMA1 CAD Model

Description

The IPL60R255P6AUMA1 is a N-Channel MOSFET transistor with a drain to source voltage (Vdss) of 600 V and a continuous drain current (Id) of 15.9A (Tc) @ 25°C.

  • Drain to Source Voltage (Vdss): 600 V
  • Continuous Drain Current (Id): 15.9A (Tc) @ 25°C
  • Maximum On-Resistance: 255mOhm @ 6.4A and 10V
  • Series: CoolMOS™ P6
  • Package: 4-PowerTSFN
  • Supplier Device Package: PG-VSON-4
  • Gate Charge (Qg): 31 nC @ 10 V
  • Input Capacitance (Ciss): 1450 pF @ 100 V
