The Infineon IPW60R017C7XKSA1 is a high-performance CoolMOS™ C7 series power MOSFET designed for high-efficiency switching power supplies and other power electronic applications. This MOSFET offers superior efficiency, power density, and thermal performance compared to traditional silicon MOSFETs. It's engineered to meet the stringent requirements of modern power electronics, enabling smaller, lighter, and more efficient power conversion systems.

Applications

• Server Power Supplies: Used in server power supplies to achieve high efficiency and power density, reducing energy consumption and heat generation.
• Telecom Power Supplies: Employed in telecom power supplies to provide reliable and efficient power conversion for communication equipment.
• Industrial Power Supplies: Integrated into industrial power supplies for motor drives, welding equipment, and other industrial applications.
• Solar Inverters: Used in solar inverters to enhance energy conversion efficiency and reduce system size.
• Electric Vehicle (EV) Charging Stations: Applied in EV charging stations to provide efficient and reliable power conversion for charging electric vehicles.

Features

• CoolMOS™ C7 Technology: Utilizes Infineon's CoolMOS™ C7 technology for superior efficiency and performance.
• Low On-Resistance (RDS(on)): Features an ultra-low RDS(on) of 17 mΩ, minimizing conduction losses and improving overall efficiency.
• High Avalanche Ruggedness: Offers high avalanche ruggedness for reliable operation in demanding applications.
• Fast Switching Speed: Provides fast switching speeds, reducing switching losses and enabling higher frequency operation.
• Optimized Gate Charge (Qg): Features an optimized gate charge for reduced driving losses and improved efficiency.

Benefits

• Increased Efficiency: CoolMOS™ C7 technology enables significantly higher efficiency compared to traditional MOSFETs, reducing energy consumption and heat generation.
• Reduced System Size and Weight: High power density allows for smaller and lighter power systems, reducing overall system size and weight.
• Improved Reliability: CoolMOS™ C7 devices offer superior reliability and robustness compared to silicon MOSFETs, ensuring long-term performance and stability.
• Lower System Cost: Despite the higher initial cost of CoolMOS™, the overall system cost can be reduced due to increased efficiency and reduced component count.
• Enhanced Thermal Management: Low RDS(on) and optimized thermal performance simplify thermal management, reducing the need for bulky heat sinks and cooling systems.

Additional Details

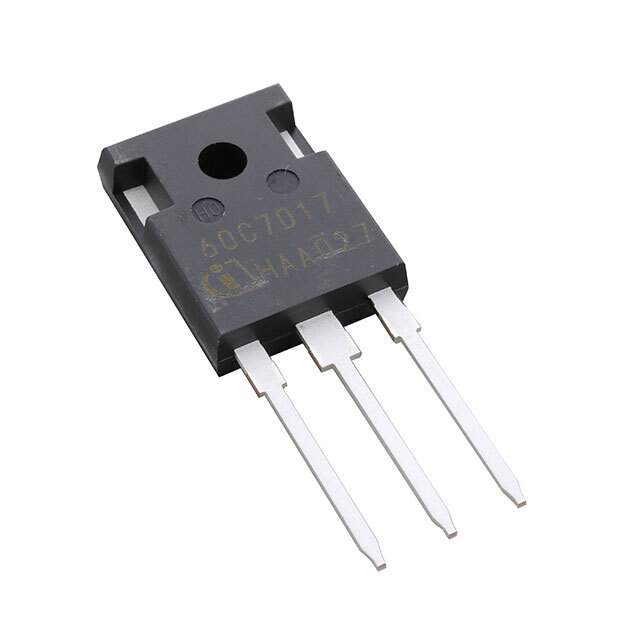

The IPW60R017C7XKSA1 is typically available in a TO-247 package for easy mounting and efficient heat dissipation. Key specifications include its voltage rating, current rating, RDS(on) value, and switching frequency. Infineon provides detailed datasheets and application notes to assist engineers in designing and implementing the IPW60R017C7XKSA1 into their power electronic systems. The device's CoolMOS™ C7 technology allows for operation at higher frequencies with lower losses, making it an ideal choice for applications requiring high efficiency and power density. Its ability to operate efficiently at high voltages and frequencies makes it a valuable component in advanced power electronics designs.
