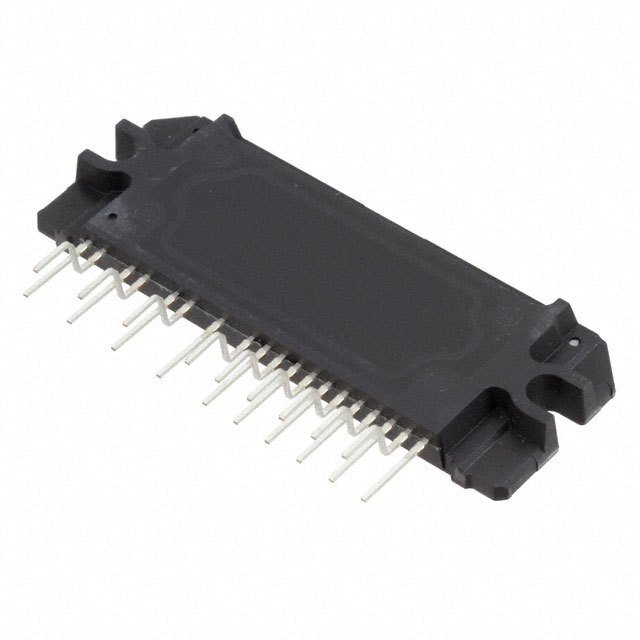

IRAMS06UP60A Infineon Technologies
Same model may have multiple batches, images only for reference.

IRAMS06UP60A

Part No IRAMS06UP60A
Manufacturer Infineon Technologies
Catalog Power Drivers - Modules
Description High Reliability Intelligent Power Modules IC / Plug N DriveTM Integrated Power Module for Appliance Motor Drive | IC POWER MODULE PLUG N DRIVE INT
Datasheet
IRAMS06UP60A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Status Obsolete
Type IGBT
Configuration 3 Phase
Current 6A
Voltage 600V
Voltage - Isolation 2000Vrms
Manufacturer Package 23-PowerSIP Module, 19 Leads, Formed Leads
Manufacturer Pack Quantity 80
MSL Level 1 (Unlimited)
Win Source Part Number 1186839-IRAMS06UP60A
Manufacturer Homepage www.irf.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name IRAMS06UP60A
Introduction Date October 04, 2004
ECCN EAR99
Country of Origin Vietnam
Halogen Free Not Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian IRAMS06UP60A CAD Model

Description

The IRAMS06UP60A is a 3-phase IGBT configuration product manufactured by Infineon Technologies.

  • Manufacturer: Infineon Technologies
  • Packaging: 23-PowerSIP Module, 19 Leads, Formed Leads
  • Application: Discrete semiconductor products
  • Status: Obsolete
  • Supply and Demand: Limited
  • Voltage: 600V
  • Current: 6A
