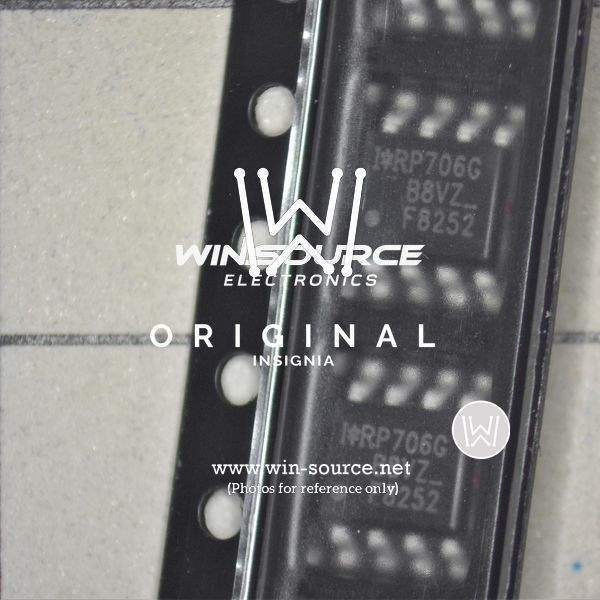

Same model may have multiple batches, images only for reference.

IRF8252TRPBF

Name: IRF8252TRPBF
Brand: Infineon Technologies
SKU: 160109
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IRF8252TRPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 25V 25A 8-SO
Datasheet	IRF8252TRPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	25V
Continuous Drain Current at 25°C	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.35V @ 100μA
Max Gate Charge	53nC @ 4.5V
Max Input Capacitance	5305pF @ 13V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	2.5W (Ta)
Maximum Rds On at Id,Vgs	2.7 mOhm @ 25A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-SO
Dimension	8-SOIC (0.154", 3.90mm Width)
Win Source Part Number	069406-IRF8252TRPBF
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRF8252TRPBF CAD Model

Alternative Products

Description

The Infineon Technologies IRF8252TRPBF is an N-channel MOSFET designed for use in discrete semiconductor products.

Drain-Source Breakdown Voltage: 25V
Continuous Drain Current Rating @ 25°C: 25A
Gate-Source Threshold Voltage: 2.35V @ 100μA
Maximum Gate Charge: 53nC @ 4.5V
Maximum Input Capacitance: 5305pF @ 13V
Maximum Rds On @ Id,Vgs: 2.7 mOhm @ 25A, 10V
Package: 8-SO
Power Dissipation: 2.5W (Ta)
Status: Obsolete (EOL)
Recommendation: Not recommended for new designs
