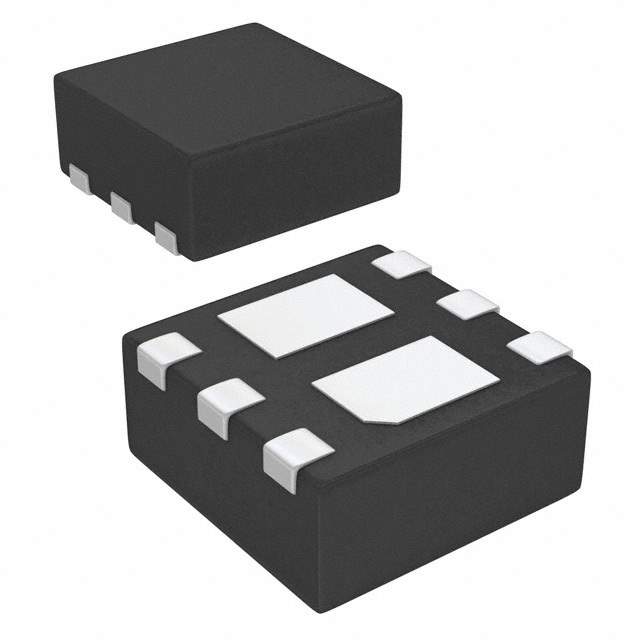

IRFHS9351TRPBF Real Image
Same model may have multiple batches, images only for reference.

IRFHS9351TRPBF

Part No IRFHS9351TRPBF
Manufacturer Infineon Technologies
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2P-CH 30V 2.3A PQFN
Datasheet
IRFHS9351TRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
FET Type 2 P-Channel (Dual)
FET Feature Logic Level Gate
Drain-Source Breakdown Voltage 30V
Continuous Drain Current at 25°C 2.3A
Maximum Rds On at Id,Vgs 170 mOhm @ 3.1A, 10V
Gate-Source Threshold Voltage 2.4V @ 10μA
Max Gate Charge 3.7nC @ 10V
Max Input Capacitance 160pF @ 25V
Maximum Power Dissipation 1.4W
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-PQFN (2x2)
Win Source Part Number 1046922-IRFHS9351TRPBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRFHS9351TRPBF CAD Model

Description

The Infineon Technologies 1046922-IRFHS9351TRPBF is a 2 P-Channel (Dual) Logic Level Gate FET with a maximum power dissipation of 1.4W.

  • Drain-Source Breakdown Voltage: 30V
  • Continuous Drain Current @ 25°C: 2.3A
  • Gate-Source Threshold Voltage: 2.4V @ 10μA
  • Maximum Gate Charge: 3.7nC @ 10V
  • Maximum Input Capacitance: 160pF @ 25V
  • Package: 6-PQFN (2x2)
  • Temperature Range: -55°C to 150°C (TJ)
  • Category: Discrete Semiconductor Products
  • Market Status: Active
  • Supply and Demand Status: Sufficient
