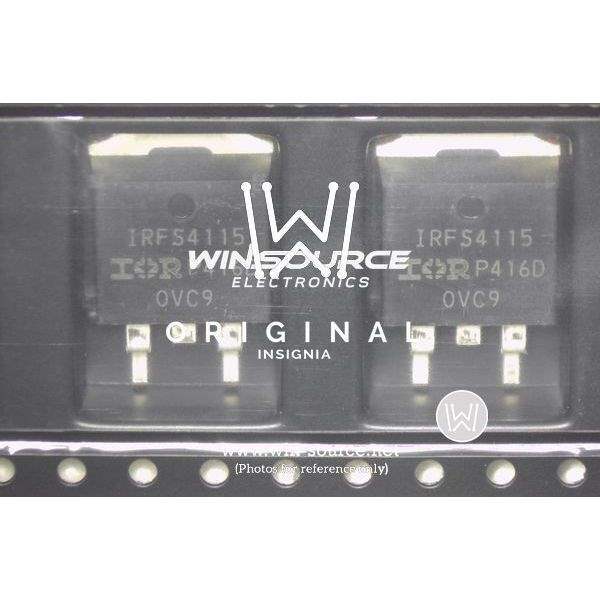

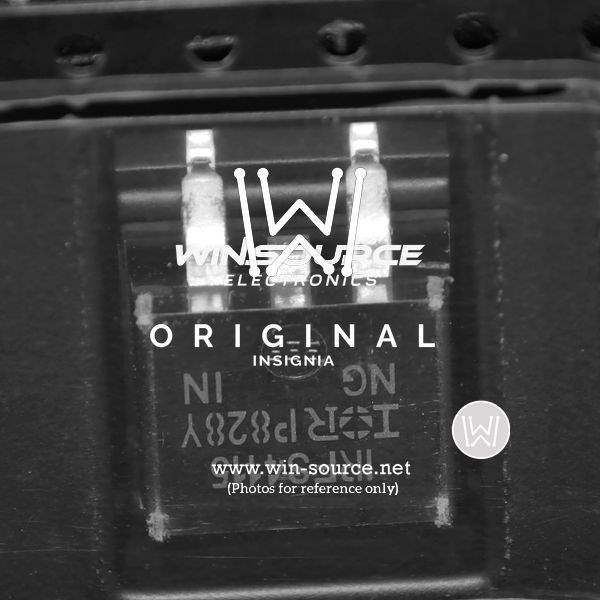

Same model may have multiple batches, images only for reference.

IRFS4115TRLPBF

Name: IRFS4115TRLPBF
Brand: Infineon Technologies
SKU: 160907
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRFS4115TRLPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 150V 195A D2PAK
Datasheet	IRFS4115TRLPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	150V
Continuous Drain Current at 25°C	195A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Gate-Source Threshold Voltage	5V @ 250μA
Max Gate Charge	120nC @ 10V
Max Input Capacitance	5270pF @ 50V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	375W (Tc)
Maximum Rds On at Id,Vgs	12.1 mOhm @ 62A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	D2PAK
Dimension	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number	117726-IRFS4115TRLPBF
Family Name	IRFS4115
Introduction Date	April 12, 2006
ECCN	EAR99
Country of Origin	Republic of Korea
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRFS4115TRLPBF CAD Model

Alternative Products

Description

The IRFS4115TRLPBF is an N-channel MOSFET from Infineon Technologies.

Drain-Source Breakdown Voltage: 150V
Continuous Drain Current: 195A @ 25°C
Maximum Rds On: 12.1 mOhm @ Id,Vgs of 62A, 10V
Gate-Source Threshold Voltage: 5V @ 250μA
Maximum Gate Charge: 120nC @ 10V
Package: D2PAK
Dimension: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Supply and demand status: balanced.
