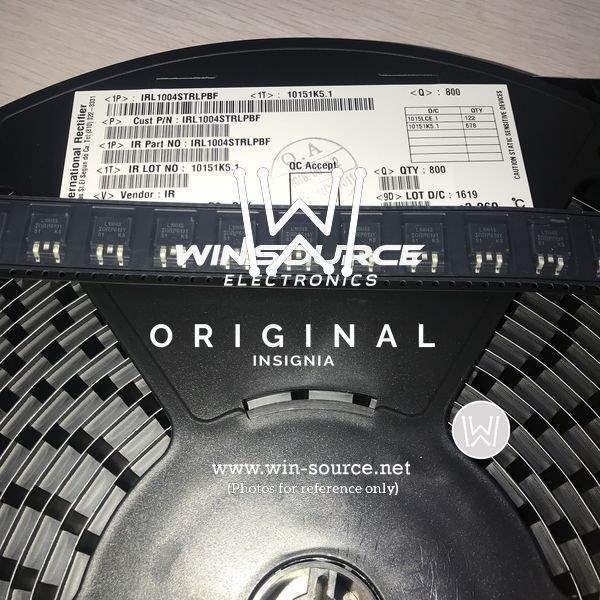

Same model may have multiple batches, images only for reference.

IRL1004STRLPBF

Name: IRL1004STRLPBF
Brand: Infineon Technologies
SKU: 462597
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	IRL1004STRLPBF
Manufacturer	Infineon Technologies
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 40V 130A D2PAK
Datasheet	IRL1004STRLPBF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel - TR
Status	Obsolete(EOL)
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	40V
Continuous Drain Current at 25°C	130A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	1V @ 250μA
Max Gate Charge	100nC @ 4.5V
Max Input Capacitance	5330pF @ 25V
Maximum Gate-Source Voltage	±16V
Power Dissipation (Max)	3.8W (Ta), 200W (Tc)
Maximum Rds On at Id,Vgs	6.5 mOhm @ 78A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	D2PAK
Dimension	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number	1047417-IRL1004STRLPBF
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	IRL1004
Introduction Date	July 19, 2004
ECCN	EAR99
Country of Origin	China, Mexico
Halogen Free	Compliant
Estimated EOL Date	Obsolete
Ultra Librarian 3D Model	Ultra Librarian IRL1004STRLPBF CAD Model

Alternative Products

Description

The Infineon Technologies 1047417-IRL1004STRLPBF is an N-channel MOSFET component with a drain-source breakdown voltage of 40V.

Continuous Drain Current: 130A (Tc) @ 25°C
Maximum Rds On at Id, Vgs: 6.5 mOhm @ 78A, 10V
Status: Obsolete (EOL)
Popularity: High
