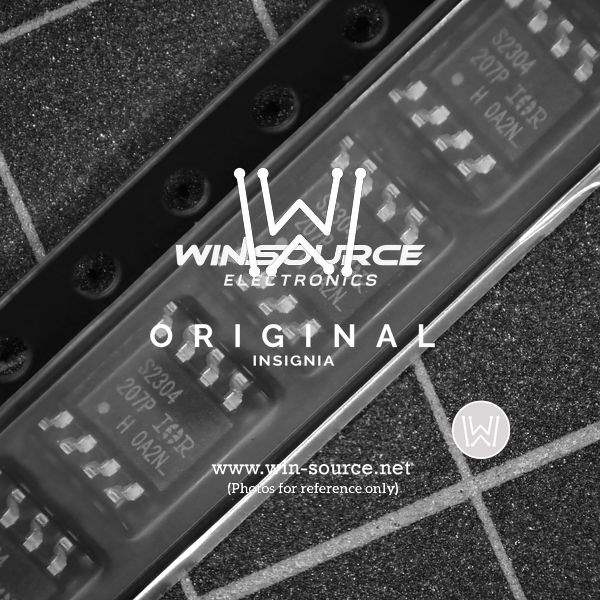

IRS2304STRPBF Real Image IRS2304STRPBF Real Image1 IRS2304STRPBF Real Image2
Same model may have multiple batches, images only for reference.
IRS2304STRPBF Real Image IRS2304STRPBF Real Image1 IRS2304STRPBF Real Image2
IRS2304STRPBF Real Image IRS2304STRPBF Real Image1 IRS2304STRPBF Real Image2
Same model may have multiple batches, images only for reference.

IRS2304STRPBF

Part No IRS2304STRPBF
Manufacturer Infineon Technologies
Catalog PMIC - Gate Drivers
Description IC DVR HALF BRIDGE HV HS 8-SOIC
Datasheet
IRS2304STRPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type IGBT, N-Channel MOSFET
Supply Voltage - Operating 10 V to 20 V
Logic Voltage - VIL, VIH 0.7V, 2.3V
Current - Peak Output (Source, Sink) 290mA, 600mA
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 600V
Rise and Fall Time 70ns, 35ns
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 017835-IRS2304STRPBF
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IRS2304STRPBF CAD Model

Description

The Infineon Technologies IRS2304STRPBF is an integrated circuit that is designed to meet the requirements of modern electronic devices.
