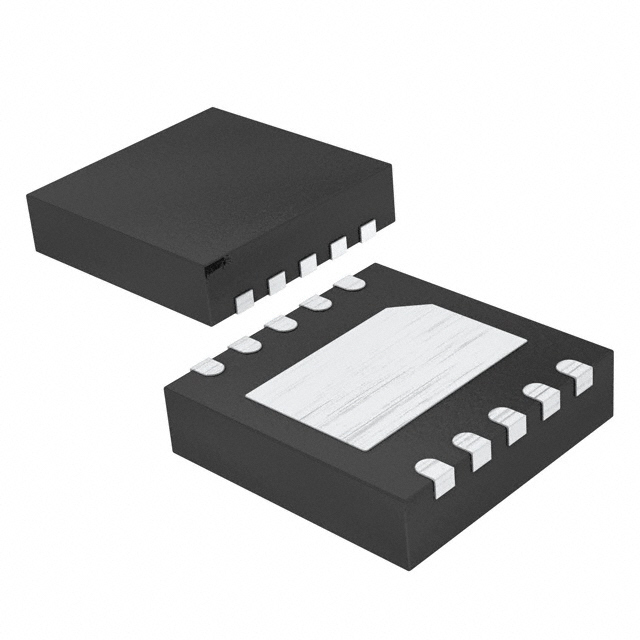

The TLS203B0LDV33XUMA1 is a low-dropout (LDO) voltage regulator manufactured by Infineon Technologies. This regulator is designed to provide a stable and accurate output voltage from a higher input voltage, while consuming minimal power. It features low quiescent current and excellent line and load regulation, making it ideal for battery-powered and energy-sensitive applications.

Applications:

• Battery-powered devices (e.g., wearables, IoT devices).
• Microcontroller power supplies.
• Post-regulation for switching power supplies.
• Portable electronic devices.
• Sensor power supplies.

Features:

• Low Dropout Voltage: Maintains regulation with minimal input-output voltage difference.
• Low Quiescent Current: Minimizes power consumption when no load is present.
• High Output Voltage Accuracy: Provides a stable and accurate output voltage.
• Overcurrent Protection (OCP): Protects the device and the load from damage due to overcurrent conditions.
• Short Circuit Protection (SCP): Provides additional protection against short circuits.
• Thermal Shutdown Protection (OTP): Protects the device from overheating.
• Stable with Ceramic Output Capacitors: Ensures stable operation with low-ESR ceramic capacitors.

Benefits:

• Extended Battery Life: Low quiescent current minimizes power consumption, extending battery life.
• Stable Output Voltage: High output voltage accuracy ensures stable operation of the powered devices.
• Simplified Design: Requires minimal external components.
• Improved Reliability: Built-in protection features enhance the reliability of the device and the system.
• Compact Solution: Small package size allows for use in space-constrained applications.

Additional Details:

The TLS203B0LDV33XUMA1 has a fixed output voltage of 3.3V. It also features an enable pin for controlling the output. The dropout voltage, quiescent current, and output voltage accuracy are typically specified in the Infineon Technologies datasheet. Proper input and output capacitors are required for stable operation. It's essential to consult the datasheet for detailed specifications, including input voltage range, load regulation, and thermal resistance. This LDO regulator is a critical component for ensuring efficient and reliable power delivery in various electronic systems.
