IXFN34N80 is an N-channel MOSFET with a breakdown voltage of 800 V and a continuous drain current of 34 A.

• Manufacturer: IXYS
• Breakdown Voltage: 800 V
• Continuous Drain Current: 34 A

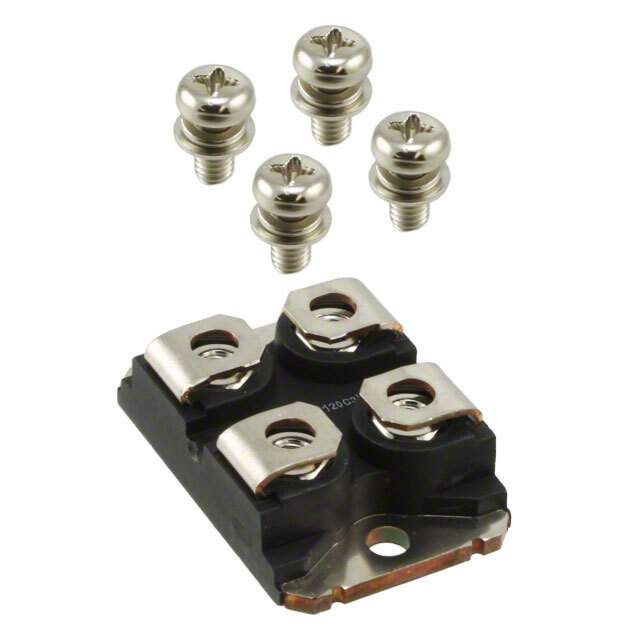

• Package: SOT-227B
• Mounting: Chassis
• Maximum On-State Resistance: 240mOhm @ 500mA and 10V
• Gate-Source Voltage: ±20V
• Input Capacitance: 7500 pF @ 25 V
• Gate Charge: 270 nC @ 10 V
• Maximum Power Dissipation @ Tc: 600W
• Operating Temperature Range: -55°C to 150°C
• REACH: Unaffected
• ECCN: EAR99
• Supplied in: Tube package with a standard package of 10 units
• Ideal for: high voltage applications where low on-state resistance and high current ratings are required.
