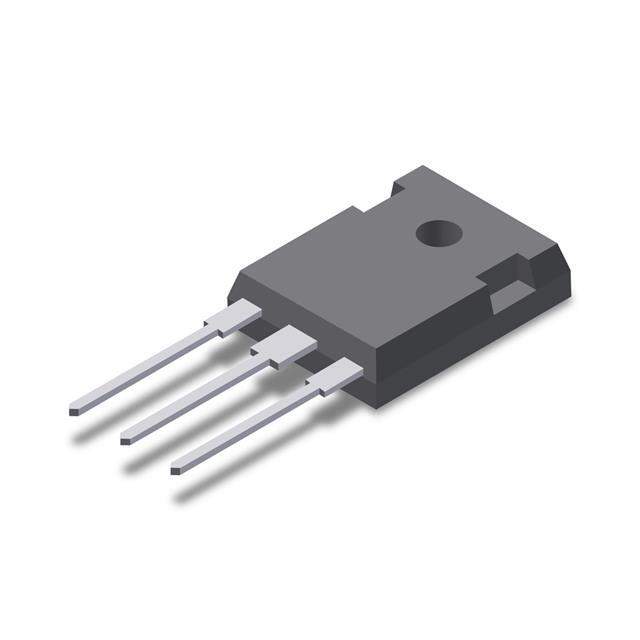

Same model may have multiple batches, images only for reference.

IXTH94N20X4

Name: IXTH94N20X4
Brand: IXYS
SKU: 1346864
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IXTH94N20X4
Manufacturer	IXYS
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 200V 94A X4 TO-247 / N-Channel 200 V 94A (Tc) 360W (Tc) Through Hole ISO TO-247-3
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	IXYS
Series	Ultra X4
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	200 V
Current - Continuous Drain (Id) @ 25°C	94A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	10.6mOhm @ 47A, 10V
Vgs(th) (Max) @ Id	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	77 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5050 pF @ 25 V
Power Dissipation (Max)	360W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ISO TO-247-3
Package / Case	TO-247-3
Base Product Number	IXTH94
Standard Package	30
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1346864-IXTH94N20X4
Ultra Librarian 3D Model	Ultra Librarian IXTH94N20X4 CAD Model

Alternative Products

Description

The IXTH94N20X4 is an N-channel MOSFET manufactured by IXYS. It belongs to the Ultra X4 series and is mounted on a TO-247-3 package.

Series: Ultra X4
Package: TO-247-3
Power Dissipation: 360W @ Tc
Current Rating: 94A @ 25°C
Rds On: 10.6mOhm @ 47A and 10V
Gate-Source Voltage: ±20V
Gate Charge: 77nC @ 10V
Input Capacitance: 5050pF @ 25V
Operating Temperature: -55°C to 175°C
ECCN: EAR99
