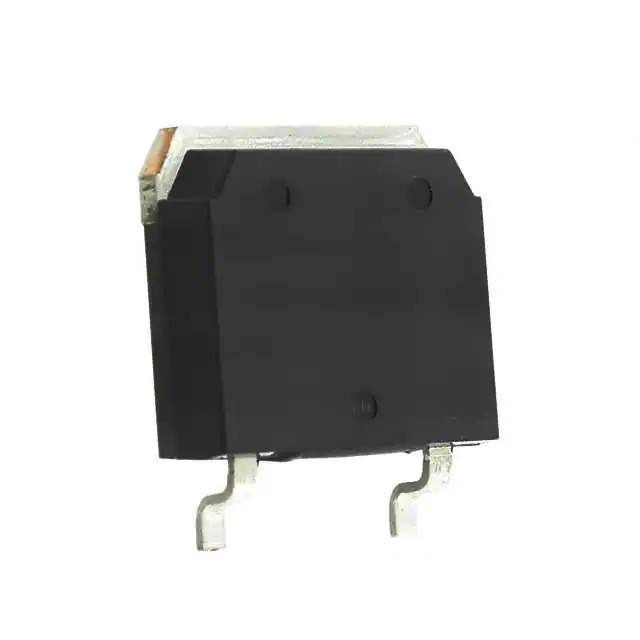

The IXTT02N450HV is a N-Channel MOSFET transistor designed for high voltage applications.

• Drain-Source Voltage: 4500 V
• Continuous Drain Current: 200mA @ 25°C
• Rds On: 750Ohm @ 10mA drain current and 10V gate-source voltage
• Vgs(th): 6.5V @ 250μA drain current
• Maximum Power Dissipation: 113W
• Mounting: Surface Mountable
• Package: TO-268-3 (D³Pak)
• Gate Charge: 10.4 nC @ 10V gate-source voltage
• Input Capacitance: 256 pF @ 25V drain-source voltage
• Operating Temperature Range: -55°C to 150°C
• Compliance: REACH regulations
• Product Status: Active
• Applications: High voltage electronic applications
