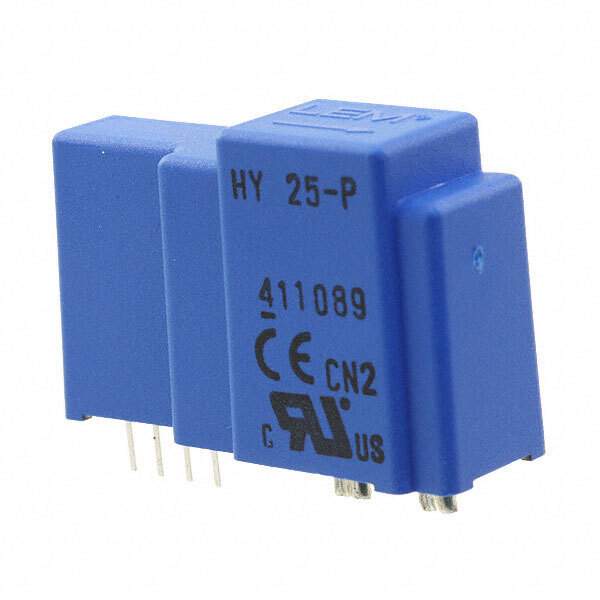

Same model may have multiple batches, images only for reference.

HY 25-P

Name: HY 25-P
Brand: LEM USA Inc.
SKU: 776264
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	HY 25-P
Manufacturer	LEM USA Inc.
Catalog	Current Transducers
Description	SENSOR CURRENT HALL 25A AC/DC / Current Sensor AC/DC Current ±12V/15V 6-Pin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Sensors, Transducers
Manufacturer	LEM USA Inc.
Series	HY
Packaging	Tray
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	25A
Number of Channels	1
Output	Ratiometric, Voltage
Frequency	DC ~ 50kHz
Linearity	±1%
Accuracy	±1%
Operating Supply Voltage	±12 V ~ 15 V
Response Time	3μs
Maximum Supply Current	10mA
Operating Temperature Range	-10°C ~ 80°C
Polarization	Bidirectional
Mounting Style	Through Hole
Package	Module
Win Source Part Number	776264-HY 25-P
Popularity	Medium
Supply and Demand Status	Limited
Family Name	HY 25-P
Introduction Date	October 27, 2006
ECCN	EAR99
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian HY 25-P CAD Model

Alternative Products

Description

The LEM USA Inc. HY 25-P is a hall-effect, open-loop sensor module manufactured by LEM USA Inc.

Sensing Current: 25A
Linearity: ±1%
Polarization: Bidirectional
Output Type: Ratiometric, Voltage
Frequency Range: DC ~ 50kHz
Response Time: 3μs
Mounting Type: Through Hole
Operating Supply Voltage: ±12V ~ 15V
Supply and Demand Status: Limited
