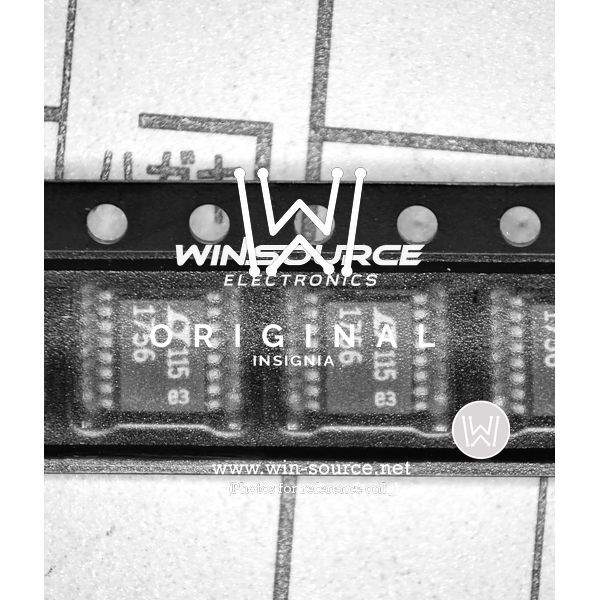

Product Overview: LTC1756EGN#TRPBF

The LTC1756EGN#TRPBF is a high-performance, secure microcontroller supervisory circuit designed by Linear Technology, now part of Analog Devices. This advanced product is specifically engineered to safeguard microcontroller-based systems from power failures, ensuring proper operation through power-up, brownout conditions, and power-down sequences.

Key Features

• Precision Monitoring: The LTC1756EGN#TRPBF offers precise monitoring of 5V, 3.3V, and adjustable voltage options, making it versatile for a wide range of applications.
• Low Power Consumption: With its low power requirements, this product is an excellent choice for power-sensitive systems, ensuring minimal impact on the overall power budget.
• Reset Timeout: It features an adjustable reset timeout period, allowing designers to customize the reset deassertion delay to match specific system requirements.
• Manual Reset Input: A dedicated manual reset input provides a means to initiate a system reset externally, offering additional control and safety mechanisms.
• Power Supply Glitch Immunity: The device ensures reliable operation even in the presence of power supply glitches, maintaining system integrity during unforeseen power disturbances.

Applications

The LTC1756EGN#TRPBF is ideal for a broad range of applications that require reliable voltage monitoring and system reset functionality. Some typical use cases include:

• Automotive systems
• Industrial control systems
• Embedded systems
• Portable and battery-operated devices
• Computing and data storage systems

Quality and Reliability

Linear Technology's LTC1756EGN#TRPBF is built to meet high standards of quality and reliability. It is available in a 16-pin SSOP package, which is RoHS compliant and suitable for automated assembly processes. The product's temperature range supports industrial-grade applications, ensuring performance in extreme conditions.

Conclusion

Overall, the LTC1756EGN#TRPBF from Linear Technology is a robust and reliable solution for supervisory control in microcontroller-based systems. Its precision monitoring capabilities, low power consumption, and customizable features make it a top choice for engineers looking to enhance system safety and stability.
