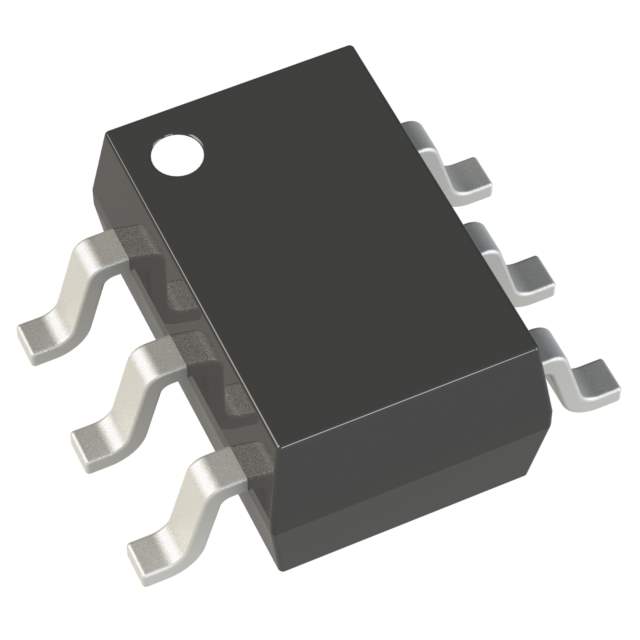

LTC2630ISC6-LZ12#TRPBF Digital-to-Analog Converter (DAC)

The LTC2630ISC6-LZ12#TRPBF is a high-precision Digital-to-Analog Converter (DAC) designed and manufactured by Linear Technology, a brand renowned for its high-performance analog integrated circuits. This particular DAC is part of the LTC2630 family, which features a range of single 12-, 10-, and 8-bit voltage output DACs with an integrated, high-accuracy, low-drift reference in a tiny 6-pin SC70 package.

This product is specifically configured with a 12-bit resolution, ensuring fine granularity and precise control over the analog output. The LTC2630ISC6-LZ12#TRPBF operates from a 2.7V to 5.5V supply, providing a flexible power range suitable for various applications. The integrated reference with a 10ppm/°C max temperature coefficient is a standout feature, offering stable performance over a wide temperature range.

One of the key features of this DAC is its user-friendly interface. It utilizes a simple SPI/Microwire-compatible 3-wire serial interface that operates at clock rates up to 50MHz, making it easily compatible with a wide range of microcontrollers and digital systems. The device also includes a power-on reset circuit that ensures the DAC output powers up to zero volts and remains there until a valid write takes place.

The LTC2630ISC6-LZ12#TRPBF supports a full-scale output of 2.5V with the internal reference and includes a shutdown feature that reduces the supply current to 0.4µA, providing power efficiency for battery-powered applications. This DAC is ideal for precision control in systems such as industrial automation, portable devices, and medical equipment where accurate and stable analog voltage outputs are critical.

Linear Technology's commitment to quality is evident in the LTC2630ISC6-LZ12#TRPBF, which is offered in a small SC70 package, making it an ideal choice for space-constrained applications. With its combination of high precision, ease of use, and compact form factor, this DAC is a versatile component for designers looking to add reliable analog output functionality to their digital systems.

Key Features:

• 12-bit resolution
• 2.7V to 5.5V supply range
• Integrated high-accuracy reference
• SPI/Microwire-compatible serial interface
• Low power shutdown mode
• Small SC70 package
