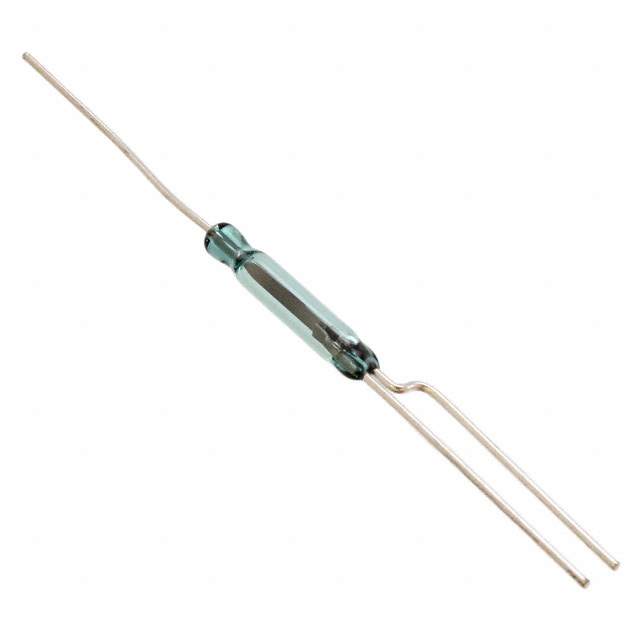

MDRR-DT-15-20-F Real Image
Same model may have multiple batches, images only for reference.

MDRR-DT-15-20-F

Part No MDRR-DT-15-20-F
Manufacturer Littelfuse Inc.
Catalog Magnetic, Reed Switches
Description SWITCH REED SPDT 180MA 120V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Littelfuse Inc.
Packaging Bulk
Type Glass Body
Circuit SPDT
Operate Range 15 ~ 20AT
Current - Switching 180mA (AC), 250mA (DC)
Voltage - Switching AC 120V
Voltage - Switching DC 175V
Power - Rated 5W
Operate Time 0.7ms
Release Time 1ms
Mounting Style Through Hole
Termination Style Axial
Length - Overall 2.034" (51.66mm)
Size - Body 0.100" Dia x 0.580" L (2.54mm x 14.73mm)
Temperature Range - Operating -40°C ~ 125°C
Capacitance 1pF
Current - Carry 1.5A (DC)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806339-MDRR-DT-15-20-F
Ultra Librarian 3D Model Ultra Librarian MDRR-DT-15-20-F CAD Model

Description

The Littelfuse MDRR-DT-15-20-F is a glass body SPDT circuit switch that has a capacitance of 1pF.

  • Operate Time: 0.7ms
  • Release Time: 1ms
  • Power Rating: 5W
  • Operating Temperature: -40°C to 125°C
  • Switching Current: 180mA (AC), 250mA (DC)
  • Voltage Rating: 120V AC, 175V DC
  • Mounting: Through-hole
  • Dimension: 0.100" Dia x 0.580" L (2.54mm x 14.73mm)
  • Manufacturer Pack Quantity: 1,000
