Same model may have multiple batches, images only for reference.

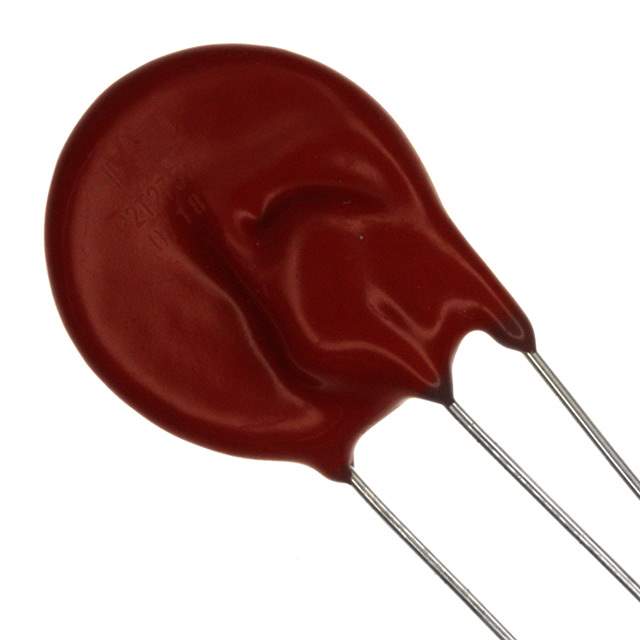

TMOV20RP510EL2T7 Real Image
Same model may have multiple batches, images only for reference.

TMOV20RP510EL2T7

Part No TMOV20RP510EL2T7
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 820V 10KA DISC 20MM / 820 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series TMOV®
Package Tape & Reel (TR)
Maximum AC Volts 510 V
Maximum DC Volts 670 V
Varistor Voltage (Min) 738 V
Varistor Voltage (Typ) 820 V
Varistor Voltage (Max) 902 V
Current - Surge 10 kA
Energy 325J
Number of Circuits 1
Capacitance @ Frequency 350 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Disc 20mm
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names -TMOV20RP510EL2T7,TMOV20R550EP-ND,TMOV20R550EP
Standard Package 300
Win Source Part Number 1205156-TMOV20RP510EL2T7
Ultra Librarian 3D Model Ultra Librarian TMOV20RP510EL2T7 CAD Model

Description

This electronic component is a TVS-Varistor, MOV manufactured by Littelfuse Inc.

  • Series: TMOV
  • Protection: thermally protected
  • Package: tape and reel
  • Standard Package: 300
  • Capacitance: 350 pF @ 1 MHz
  • Varistor Voltage: 738V to 902V
  • Surge Current: 10 kA
  • Maximum AC Voltage: 510V
  • Maximum DC Voltage: 670V
  • Energy Rating: 325J
  • Mounting Type: through-hole
  • Package: disc 20mm
  • Operating Temperature Range: -55°C to 85°C (TA)
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8533.40.4000
