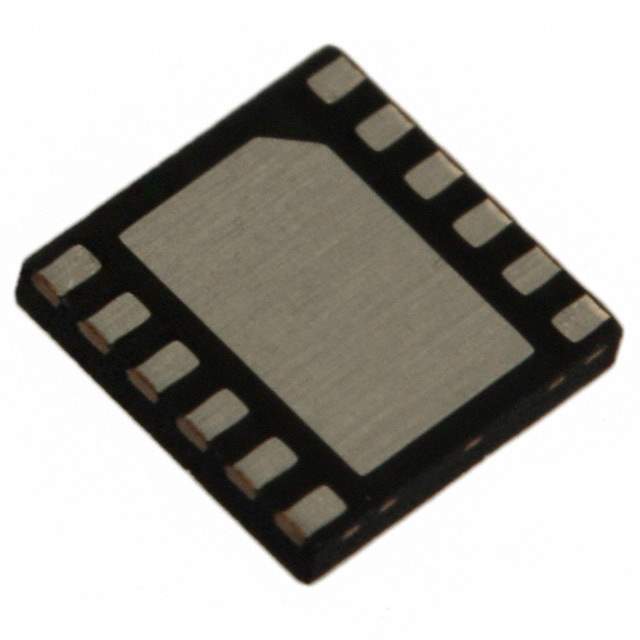

The MAX17116EVC+T from Maxim Integrated is a high-efficiency, high-voltage, step-up converter designed for driving multiple strings of LEDs. This advanced power solution is ideal for backlighting applications in LCD panels, offering a compact and efficient way to deliver consistent brightness and extend the life of the LEDs.

Key Features

• High-Efficiency Step-Up Converter: The device is built to provide a step-up voltage conversion with high efficiency, which is crucial for battery-powered devices where power conservation is key.
• Multiple String Capability: It is capable of driving multiple strings of LEDs, ensuring uniform brightness across large display panels.
• Integrated Switch: The MAX17116EVC+T includes an integrated high-side n-channel switch, which simplifies the circuit design and reduces external component count.
• Wide Input Voltage Range: The device operates over a wide input voltage range, accommodating various power sources and making it versatile for different applications.
• Adjustable Brightness Control: It features an adjustable brightness control that allows for precise dimming capabilities, enhancing the user experience with the display.
• Thermal Shutdown Protection: The built-in thermal shutdown protection ensures the device operates within safe temperature limits, preventing damage from overheating.

Applications

The MAX17116EVC+T is suitable for a variety of applications, particularly those requiring high-voltage output and multiple LED string driving capabilities. This includes:

• LCD TV Backlights
• Monitor Backlights
• Notebook Computer Screens
• Automotive Displays

Product Specifications

The product is available in a compact package and is designed for easy integration into a wide range of electronic devices. It comes in a tape and reel format (denoted by the '+T' suffix in the product name), which is suitable for automated manufacturing processes.

Why Choose MAX17116EVC+T?

Maxim Integrated's MAX17116EVC+T stands out for its efficiency, flexibility, and ease of use. With the ability to drive multiple LED strings, protect against thermal overload, and offer a wide input voltage range, it is a top choice for designers looking to enhance their backlighting solutions with a reliable and high-performing LED driver.
