Maxim Integrated MAX6102EUR+T Voltage Reference

The MAX6102EUR+T is a high-precision, low-dropout voltage reference from Maxim Integrated. This component is designed to ensure stability and accuracy in a wide range of applications, including data converters, portable instrumentation, and industrial control systems. The MAX6102EUR+T operates with a typical supply current of 60μA, making it an excellent choice for battery-powered and energy-efficient devices.

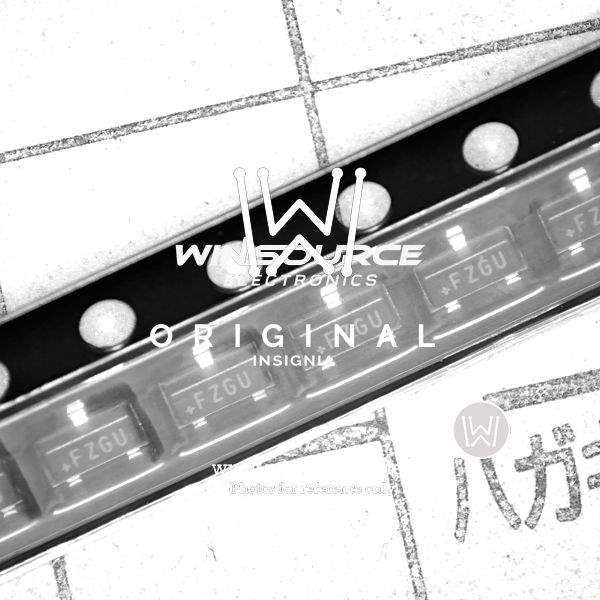

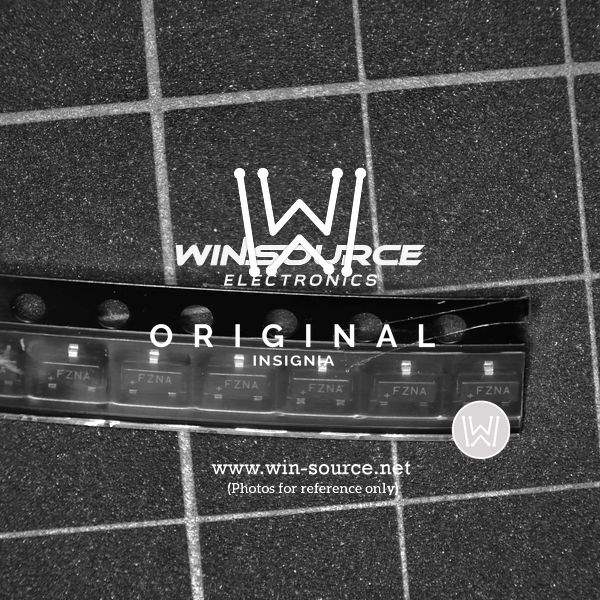

This voltage reference features a series mode design and comes in a compact SOT-23 package, which is ideal for space-constrained applications. It provides a fixed reference voltage of 2.5V, with an impressive initial accuracy of ±0.2% and a low temperature coefficient of 35ppm/°C (max), ensuring reliable performance over a wide temperature range of -40°C to +85°C.

The MAX6102EUR+T also boasts a low dropout voltage, which means it can maintain accurate output even when the supply voltage is very close to the output voltage. This characteristic is particularly useful in applications where the supply voltage may fluctuate or be limited. Additionally, the device has a high output current capability, able to source or sink up to 5mA of load current while maintaining excellent line and load regulation.

For enhanced stability, the MAX6102EUR+T is designed to work with capacitive loads up to 2.2μF without oscillation. This feature allows designers to use capacitors for noise reduction without compromising the stability of their system. Furthermore, the device includes short-circuit protection, safeguarding it against potential damage that could be caused by abnormal operating conditions.

Overall, the Maxim Integrated MAX6102EUR+T voltage reference is a robust and reliable choice for precise voltage regulation needs. Its combination of high accuracy, low power consumption, and compact size makes it a versatile solution for a diverse array of electronic designs.

• Supply Voltage Range: 2.7V to 12.6V
• Output Voltage: 2.5V ±0.2%
• Temperature Coefficient: 35ppm/°C (max)
• Load Regulation: 75ppm/mA (max)
• Supply Current: 60μA (typical)
• Package: SOT-23
