The MAX9716EBL+TG45 from Maxim Integrated is a high-efficiency, Class D audio amplifier designed to deliver exceptional audio performance for a wide range of applications. This compact and powerful amplifier is ideal for portable and space-constrained audio systems where power efficiency and sound quality are paramount.

Key Features

• Output Power: Capable of delivering up to 1.4W per channel into 8Ω loads, ensuring robust sound output for its size.
• High Efficiency: Class D operation provides over 90% efficiency, significantly reducing power loss and heat generation compared to traditional amplifiers.
• Low EMI: Spread-spectrum modulation helps to minimize electromagnetic interference, making it easier to meet regulatory requirements.

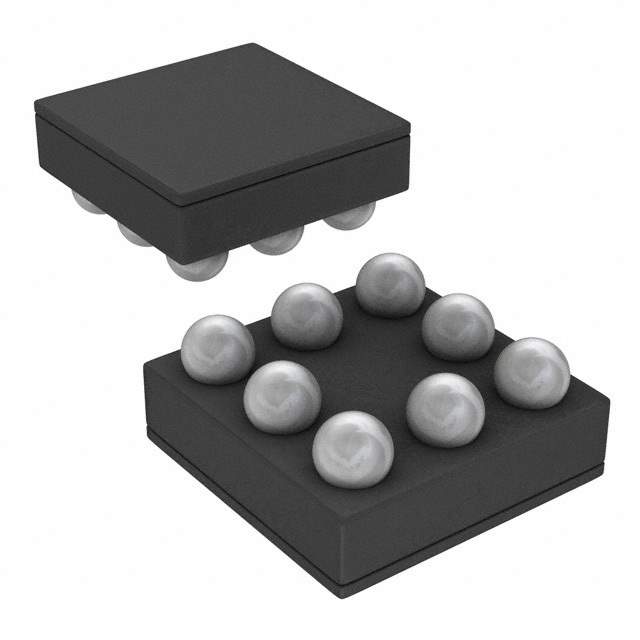

• Compact Size: Offered in a tiny 9-bump UCSP (Ultra Chip-Scale Package) that is ideal for portable electronics where space is at a premium.
• Flexible Supply Voltage: Operates over a wide 2.7V to 5.5V supply range, accommodating various power sources from batteries to regulated power supplies.

Applications

The MAX9716EBL+TG45 is suitable for a variety of audio applications, including but not limited to:

• Mobile Phones
• Portable Media Players
• Handheld Gaming Devices
• Tablet Computers
• Bluetooth Speakers
• Other Portable Audio Devices

Technical Specifications

Overall, the MAX9716EBL+TG45 is a testament to Maxim Integrated's commitment to providing high-quality audio solutions that meet the evolving needs of modern electronics. Its combination of power, efficiency, and compact size makes it an excellent choice for designers looking to enhance the audio experience in their products.
