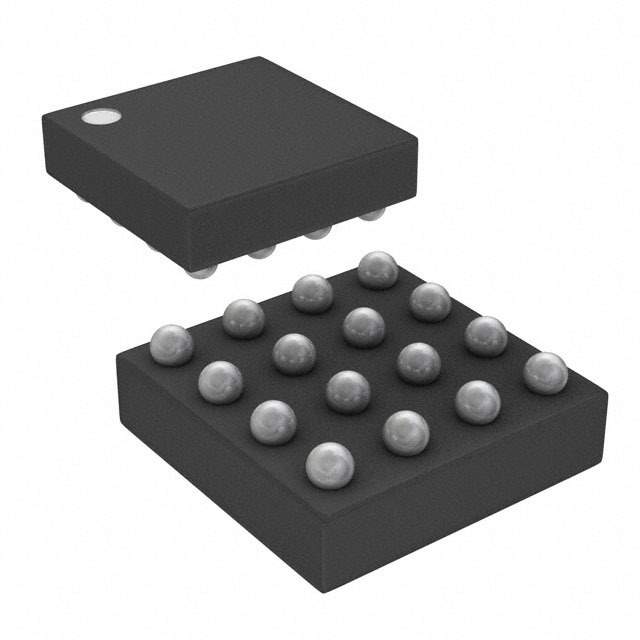

LM3560TLE-20/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3560TLE-20/NOPB

Part No LM3560TLE-20/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRVR RGLTR DIM 1A 16DSBGA
Datasheet
LM3560TLE-20/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.5V
Maximum Supply Voltage 5.5V
Channel Output Current 1A (Flash)
Frequency 2MHz
Dimming I2C
Applications Camera Flash
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 16-DSBGA
Win Source Part Number 133359-LM3560TLE-20/NOPB
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LM3560TLE-20/NOPB CAD Model

Description

The LM3560TLE-20/NOPB is a high-quality, high-performance integrated circuit (IC) product from Texas Instruments, a global leader in semiconductor technology.

  • LED Driver: Adjustable, dual-channel, high-frequency, and constant-current.
  • Current Sources: Incorporates two highly regulated current sources.
  • Current: Each channel can drive up to 29.5mA.
  • Input Voltage Range: From 2.7V to 5.5V.
  • Interface: I2C compatible interface.
  • Brightness Control: 32-level logarithmic LED brightness control.
  • Power Efficiency: Designed with a high-efficiency boost converter.
  • Protection System: Includes over-voltage protection, over-temperature protection, and LED open/short detection.
  • Package: Tiny 20-bump lead-free DSBGA package.
