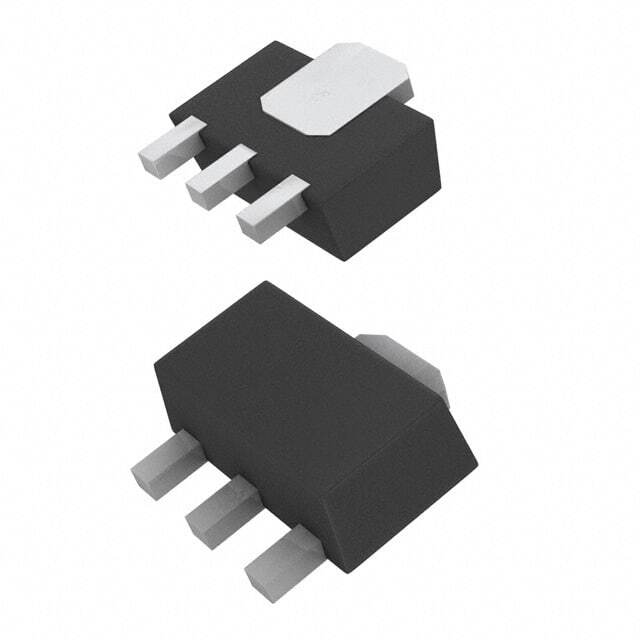

2SC4672-Q-TP
Same model may have multiple batches, images only for reference.

2SC4672-Q-TP

Part No 2SC4672-Q-TP
Manufacturer Micro Commercial Co
Catalog Transistors (BJT) - Single
Description TRANS NPN 50V 2A SOT89 / Bipolar (BJT) Transistor NPN 50 V 2 A 210MHz 500 mW Surface Mount SOT-89
Datasheet
2SC4672-Q-TP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Micro Commercial Co
Package Tape & Reel
Product Status Obsolete
Transistor Type NPN
Current - Collector (Ic) (Max) 2 A
Voltage - Collector Emitter Breakdown (Max) 50 V
Vce Saturation (Max) @ Ib, Ic 350mV @ 50mA, 1A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 120 @ 500mA, 2V
Power - Max 500 mW
Frequency - Transition 210MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-243AA
Supplier Device Package SOT-89
Base Product Number 2SC4672
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.21.0075
Win Source Part Number 865639-2SC4672-Q-TP
Ultra Librarian 3D Model Ultra Librarian 2SC4672-Q-TP CAD Model

Description

The 865639-2SC4672-Q-TP is a high-speed NPN bipolar transistor designed for amplification and switching applications.

  • Power Dissipation: 500mW (Max)
  • Collector-Emitter Breakdown Voltage: 50V
  • Collector Current: 2A (Max)
  • Vce Saturation: 350mV @ 50mA Ib, 1A Ic
  • Collector Cutoff Current: 100nA (Max)
  • Transition Frequency: 210MHz
  • Mounting Type: Surface Mount
  • Package: TO-243AA (SOT-89)
  • Lifecycle Status: Obsolete
