Microchip Technology ATF1504AS-7QC100 Product Overview

The ATF1504AS-7QC100 is a high-performance, programmable logic device (PLD) from Microchip Technology's renowned Atmel product line. This complex programmable logic device (CPLD) is designed to meet the needs of a wide range of digital logic system applications. It is a member of the Atmel ATF15xxAS series, which is known for its low power consumption and high functionality.

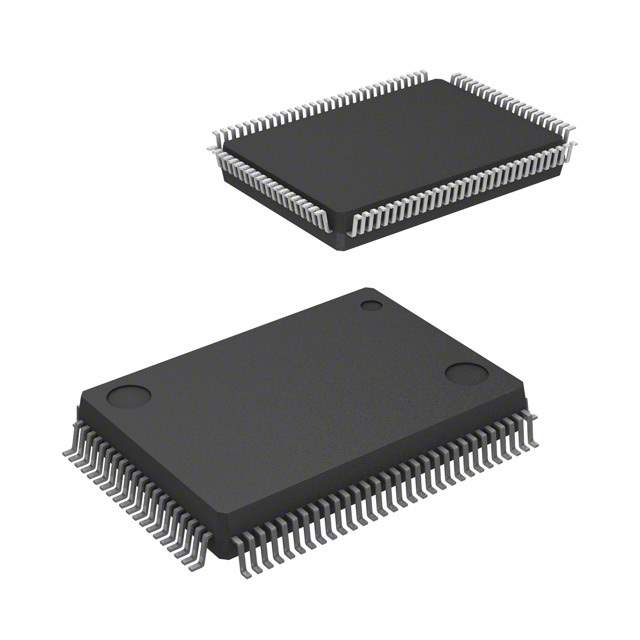

Integrated with a robust architecture, the ATF1504AS-7QC100 provides a flexible and efficient solution for implementing custom logic designs. It features a 100-pin Quad Flat Package (QFP) that allows for a compact footprint on printed circuit boards. The device operates at a voltage of 5V with 7ns propagation delay time, ensuring fast and reliable performance for critical applications.

This CPLD is equipped with 64 macrocells that offer ample logic capacity for moderate complexity designs. Each macrocell is configurable and can be tailored to specific design requirements, which makes the ATF1504AS-7QC100 highly adaptable to various digital logic tasks. The macrocells are organized in Versatile Interconnect Matrix (VIM), which provides a wide range of interconnectivity options, further enhancing the device's flexibility.

The ATF1504AS-7QC100 supports a range of design entry and verification tools that facilitate easy programming and reprogramming of the device. This is particularly useful for prototyping and iterative design processes where rapid changes may be required. Additionally, the device boasts in-system programmability (ISP) via JTAG, allowing for updates and modifications to be made post-deployment without the need to remove the device from its application environment.

In terms of security, the ATF1504AS-7QC100 includes features to protect the integrity of the design. Users can secure their configurations against unauthorized copying or tampering, ensuring the safety of intellectual property.

Overall, the ATF1504AS-7QC100 from Microchip Technology is an excellent choice for designers looking for a versatile, low-power, and high-performance CPLD. Whether it's used in industrial control systems, automotive applications, communication devices, or consumer electronics, this device delivers the reliability and adaptability that modern digital systems require.
