dSPIC33FJ16GS502-E/MX Digital Signal Controller

The dSPIC33FJ16GS502-E/MX from Microchip Technology is a high-performance 16-bit Digital Signal Controller (DSC) that combines the benefits of microcontrollers with the digital signal processing capabilities required for demanding applications. This DSC is specifically designed for applications that require efficient, high-speed data processing and manipulation, such as digital power conversion, motor control, and audio processing.

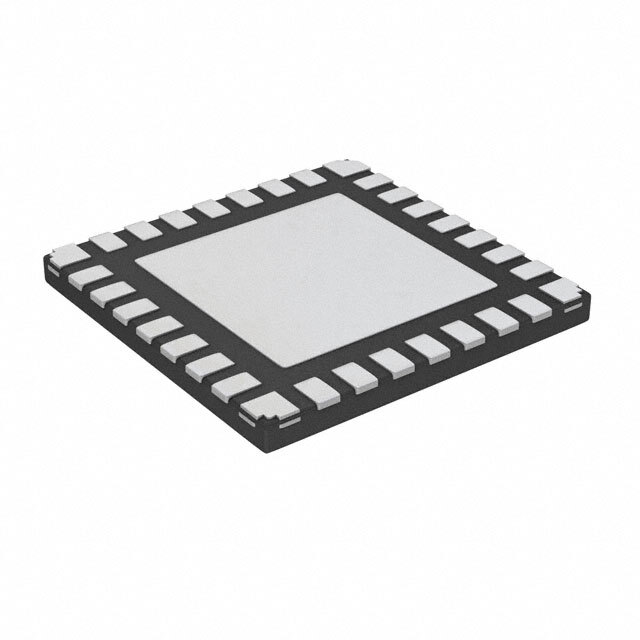

This particular model, encapsulated in a 28-pin QFN package, boasts a rich set of features that make it an ideal choice for advanced technical solutions. At its core, the dSPIC33FJ16GS502-E/MX operates at a maximum frequency of 40 MHz, with a modified Harvard architecture that enhances the execution of DSP instructions.

Key features of the dSPIC33FJ16GS502-E/MX include:

• 16-bit modified Harvard architecture that allows it to execute instructions efficiently.
• 16-bit wide data path and 24-bit wide instructions, ensuring high performance for time-critical applications.
• High-Speed PWM modules which are essential for precise control in power applications.
• ADC with up to 10-bit resolution, providing accurate analog to digital conversions.
• Flexible communication interfaces such as I2C, SPI, and UART for easy connectivity with other devices.
• Robust on-chip peripherals that support a wide range of applications without the need for additional components.
• Flash memory of 16 KB and RAM of 2 KB for program and data storage.
• Extended temperature range, making it reliable in various environmental conditions.

The dSPIC33FJ16GS502-E/MX is also known for its power efficiency, which is critical in portable and power-sensitive applications. With its built-in power-on reset, brown-out reset, and voltage regulators, this DSC ensures reliable operation even in unstable power conditions.

Whether you're designing an advanced motor control system, a sophisticated digital power supply, or any other application that requires a blend of control and signal processing, the dSPIC33FJ16GS502-E/MX offers a compact, powerful solution that can meet your technical requirements.
