Microchip Technology M2S060-FCSG325

The M2S060-FCSG325 is a state-of-the-art FPGA (Field-Programmable Gate Array) developed by Microchip Technology, designed to deliver high performance, reliability, and flexibility for a wide range of applications. This product is a part of Microchip's SmartFusion2 SoC FPGA family, which combines the benefits of programmable logic with a hardened microcontroller subsystem and programmable analog, providing an ideal solution for industrial, medical, automotive, and communication applications.

Key Features

• High-Performance FPGA Fabric: The M2S060-FCSG325 is built on a 65nm flash process and features 60K logic elements (LEs) which provide ample logic density for complex designs.
• Microcontroller Subsystem (MSS): Integrated ARM Cortex-M3 processor running at up to 166MHz, offering a powerful 32-bit RISC processing unit for embedded applications.
• Embedded Memory: It includes 256KB of embedded non-volatile memory (eNVM) and 4MB of embedded SRAM, ensuring high-speed data storage and retrieval.
• Security: With advanced security features such as secure boot, 256-bit AES encryption, and a random number generator, the M2S060-FCSG325 ensures secure data handling and IP protection.
• High-Speed Serial Interfaces: The device supports PCIe, Gigabit Ethernet, and XAUI interfaces, enabling rapid data transfer and connectivity for high-speed communication requirements.
• Power Efficiency: SmartFusion2 devices are known for their low power consumption, making the M2S060-FCSG325 suitable for power-sensitive applications.
• I/O Versatility: With up to 300 user I/Os, this product offers a high degree of flexibility for interfacing with a variety of peripherals and devices.

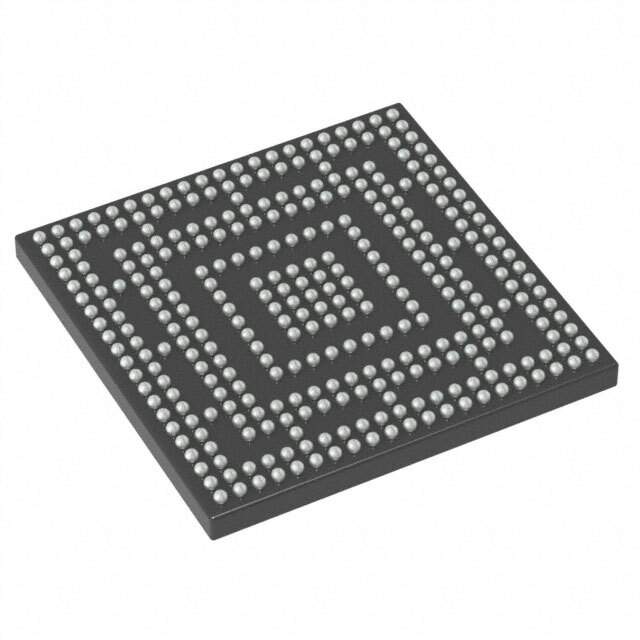

• Package: The FPGA is available in a compact 325-ball flip-chip BGA package, ensuring a small footprint for space-constrained applications.

Applications

The versatility of the M2S060-FCSG325 FPGA makes it an excellent choice for applications that require a mix of high-speed logic, efficient data processing, and secure operations. Its typical applications include industrial automation, advanced driver assistance systems (ADAS), medical imaging, data storage, and complex embedded systems.

With its robust set of features, the M2S060-FCSG325 from Microchip Technology represents a powerful and secure solution for designers looking to leverage FPGA technology for their next-generation products.
